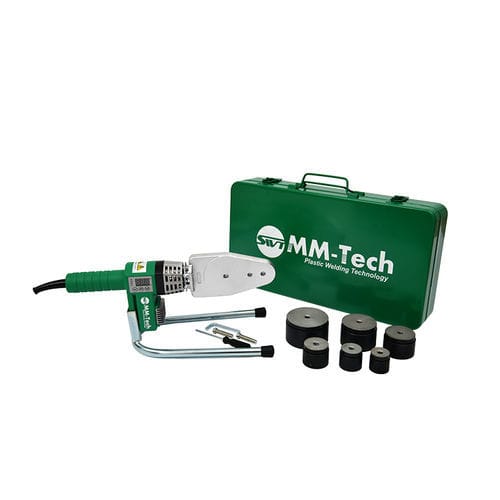

Polymer electric fusion machine ZTHJ-63A

Overview

Compact socket fusion welder designed for welding PPR, PE and PB pipes used in plumbing and hot/cold water supply. Ergonomic nylon-rubber handle and digital display facilitate control and portability.

Applications

• Plumbing installations
• Hot water supply systems
• Cold water supply systems

Key features

• Digital display for temperature control and monitoring
• Compact, lightweight construction for portability
• Nylon rubber ergonomic handle; ABS + nylon housing
• Aluminum heater plate (up to 19 mm) with optional Teflon surface
• Selectable heating element: 110V / 220V; supports 50Hz / 60Hz
• Rated power 800 W; working temperature up to 260 °C; warning temperature 295 °C
• LED working light; aluminum moulded insulation cover; magnesium cooling fins
• VDE copper wire with up to 3 m cable; supports international plugs and protective plug cover
• U-type machine support with special table clamps; stainless steel spanner and screw included
• Includes heating sockets, repair sockets and saddle sockets; OEM packaging options
• 2-year quality warranty

Fusion instructions (summary)

• 1. Prepare fusion: position and check tools
• 2. Cut pipe to required length
• 3. Clean pipe: remove burrs and grease
• 4. Measure fusion depth on pipe and fitting
• 5. Heating: place parts on heater plate/sockets and heat to required temperature
• 6. Join and cool: assemble heated parts and allow to cool for a solid joint

Technical specifications

• Model: ZTHJ-63A
• Rated Voltage: 110V / 220V
• Rated Frequency: 50Hz / 60Hz
• Rated Power: 800 W
• Working Temperature: 260 °C
• Temperature Tolerance: ≤5 °C
• Warning Temperature: 295 °C
• Welding Size (mm): 20, 25, 32, 40, 50, 63
• Suitable Material: PP-R / PE / PB
• Net Weight: 1.8 kg
• Pieces per Carton: 2 pcs
• Gross Weight (per carton): 15.2 kg
• Package Dimensions (mm): 460 × 270 × 270
