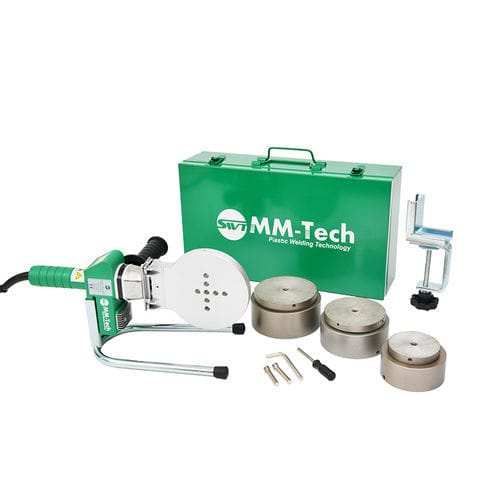

Polymer electric fusion machine ZRJQ-110T

for industrial applicationsresistance

The ZRJQ-110T is a socket-fusion welding machine for PPR/PE/PB pipes, equipped with a digital display and designed for professional plumbing installations (hot and cold water systems). It provides controlled heating and standard-compliant fusion for pipe joints.

Key features

• Teflon-coated heating elements and die heads for reduced adhesion and easier cleaning
• Thick aluminium heater plate (up to 19 mm) with optional Teflon surface
• Ergonomic handle in nylon rubber / ABS with robust nylon core
• Clear digital display and LED work light for precise temperature control and visibility
• Aluminium moulded insulation cover and magnesium cooling fins for heat management
• VDE copper wire with rubber-covered 3 m cable; supports international plugs and includes plug cover
• U-type machine support, special table clamps, stainless-steel wrench and screws included
• Heating sockets, repair sockets and saddle sockets supplied; steel carrying case (1.0 mm) with OEM color/logo support
• Built to DVS2208-1 standard; CE certificate available; 2-year quality warranty

Applications

• Plumbing installations: hot and cold water supply systems; professional plumbers and pipefitters

Socket-fusion instructions (summary)

• 1. Prepare the machine and work area.
• 2. Cut pipe square to required length.
• 3. Clean pipe ends and remove burrs.
• 4. Measure and mark insertion depth.
• 5. Heat pipe and fittings with the correct die head to target temperature.
• 6. Join parts, align marks and allow to cool without movement.

Certifications and services

• CE certificate (as stated).
• 2-year quality warranty.
• Technical support and OEM customization (colors, models, logos) available.

Technical specifications

• Model: ZRJQ-110T
• Rated Voltage: 110V / 220V
• Rated Frequency: 50Hz / 60Hz
• Rated Power: 1200W
• Working Temperature: 260 °C
• Temperature Tolerance: ≤ 5 °C
• Warning Temperature: 295 °C
• Welding Sizes: 75 / 90 / 110 mm
• Suitable Materials: PP-R / PE / PB
• Net Weight: 2.0 kg
• Pieces per Carton: 2 pcs
• Gross Weight: 22.8 kg
• Dimensions (mm): 460 × 270 × 270
