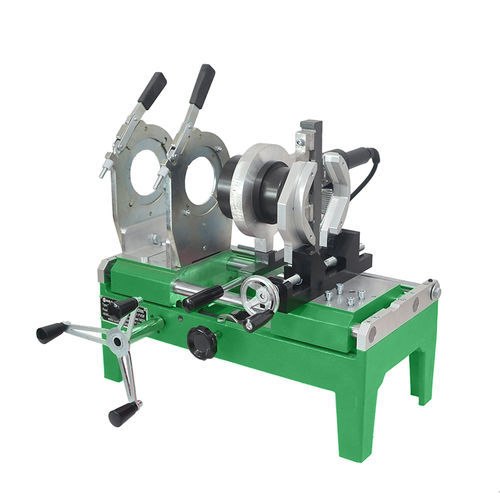

Butt welding machine TSC seriesautomaticfor pipesfor thermoplastics
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Applications
- for thermoplastics, for pipes
- Power supply
- 230V single phase, 220V single phase
- Power
1,200 W, 1,400 W, 1,800 W
Description
Overview
The TSC Series bench socket fusion machines (TSC-90, TSC-125, TSC-160) are engineered for socket fusion welding of thermoplastic pipes (PP-R, PE, PP, PB, PVDF), covering diameters from 20 mm up to 160 mm (1"–6" IPS). The machines feature an intelligent temperature control box and a removable active tripod stand for portable use on sites and flat surfaces.
Key features
Applications
Packing & delivery
Technical specifications
The TSC Series bench socket fusion machines (TSC-90, TSC-125, TSC-160) are engineered for socket fusion welding of thermoplastic pipes (PP-R, PE, PP, PB, PVDF), covering diameters from 20 mm up to 160 mm (1"–6" IPS). The machines feature an intelligent temperature control box and a removable active tripod stand for portable use on sites and flat surfaces.
Key features
- Removable tripod stand with a main frame for easy transport and stable operation on construction sites and flat surfaces.
- Intelligent temperature control box supports precise welding across multiple thermoplastic materials.
- Active tripod pipe support holds the pipe securely during welding to ensure consistent joint quality.
Applications
- Supply water systems
- Drainage systems
- Industrial fluid transport
Packing & delivery
- Machines are packed in wooden crates or reinforced cartons to protect equipment during transport; typical packing images show secure wooden/crate packaging for safe delivery.
Technical specifications
- Models: TSC-90, TSC-125, TSC-160 (TSC Series)
- Working temperature: 200–279℃ ±1%
- Materials suitable for welding: PP-R, PE, PP, PB, PVDF
- Rated voltage: TSC-90 — AC 110V/220V, 50/60Hz; TSC-125/TSC-160 — AC 220/230V, 50/60Hz
- Rated power: TSC-90 — 1200W; TSC-125 — 1400W; TSC-160 — 1800W
- Working range (pipe diameters): TSC-90 — 20–90 mm; TSC-125 — 20–125 mm; TSC-160 — 50–160 mm
- Gross weight / Net weight (GW/NW): TSC-90 — 90/76 kg; TSC-125 — 60/40 kg; TSC-160 — 150/130 kg
- Carton size (approx.): TSC-90 — 800×600×400 mm; TSC-125 — 630×700×570 mm; TSC-160 — 1100×820×760 mm
- Warranty & certification: 2-year quality warranty; CE certificate as stated on product page
