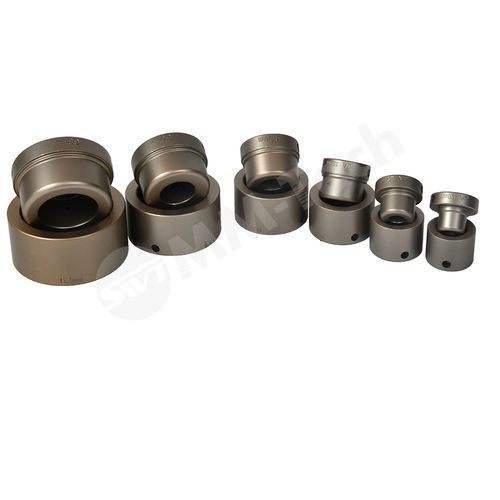

Pipe socket

Pipe welding socket designed for socket-fusion welding, suitable for pipe assembly welding with a wide range of available diameters.

Welding sockets:

• 16 mm — 75 mm
• 20 mm — 90 mm
• 25 mm — 110 mm
• 32 mm — 125 mm
• 40 mm — 140 mm
• 50 mm — 160 mm
• 63 mm — (no value provided)

Specifications for the welding socket:

• 16 mm: Male A = 16.04; Male B = 15.84 ±0.04; Female A = 15.54; Female B = 15.44 ±0.04; Fusion depth H A = 13; H B = 13
• 20 mm: Male A = 20.05; Male B = 19.78 ±0.04; Female A = 19.53; Female B = 19.38 ±0.04; Fusion depth H A = 14; H B = 14
• 25 mm: Male A = 25.04; Male B = 24.77 ±0.04; Female A = 24.51; Female B = 24.32 ±0.04; Fusion depth H A = 15; H B = 16
• 32 mm: Male A = 32.03; Male B = 31.75 ±0.04; Female A = 31.50; Female B = 31.26 ±0.04; Fusion depth H A = 16.5; H B = 18
• 40 mm: Male A = 40.02; Male B = 39.76 ±0.04; Female A = 39.48; Female B = 39.20 ±0.04; Fusion depth H A = 18; H B = 20
• 50 mm: Male A = 50.02; Male B = 49.68 ±0.06; Female A = 49.46; Female B = 49.19 ±0.06; Fusion depth H A = 20; H B = 23
• 63 mm: Male A = 62.99; Male B = 62.60 ±0.06; Female A = 62.46; Female B = 62.10 ±0.06; Fusion depth H A = 24; H B = 27
• 75 mm: Male A = 74.91; Male B = 74.59 ±0.06; Female A = 74.32; Female B = 74.00 ±0.06; Fusion depth H A = 26; H B = 31
• 90 mm: Male A = 89.92; Male B = 89.57 ±0.06; Female A = 89.33; Female B = 88.93 ±0.06; Fusion depth H A = 29; H B = 35
• 110 mm: Male A = 109.88; Male B = 109.49 ±0.06; Female A = 109.29; Female B = 108.80 ±0.06; Fusion depth H A = 32.5; H B = 41

Characteristics / technical specifications:

• Product name: Pipe Welding Socket
• Size range: 20 mm – 160 mm (also available in US inch sizes: 1/2" – 2" or custom)
• Material: Aluminium
• Coating / finish: Daikin Teflon
• Color: Black and gold, or custom
• Supply type: Metric or US inch (customizable)
• Dimensional tolerances: indicated per diameter in the "Specifications" section (e.g. ±0.04 mm or ±0.06 mm depending on diameter)
