Hot melt glue melter prisme160

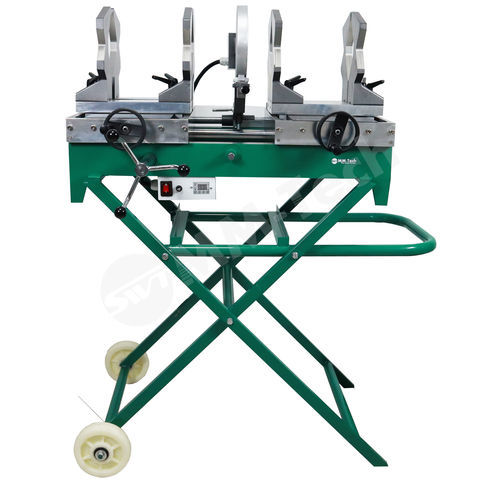

The Prisma Series bench socket fusion machines (Prisma125, Prisma160) are mechanical bench units for socket-fusion welding of thermoplastic pipes (HDPE, PPR, PPH, PB, PVDF). Prisma125 covers 25–125 mm and Prisma160 covers 75–160 mm; together the series covers 25–160 mm depending on model. The machines provide precise weld-depth gauging and mechanical operation to standardize joint quality in workshop and industrial pipe-fitting environments.

Key features

• Precise gauge for weld depth control
• Accurate control of fit depth for consistent joints
• Mechanical operation to reduce variability between welds
• Designed for workshop use and repetitive production

Description
The Prisma series is engineered for reproducible socket-fusion joints on HDPE, PP‑R, PPH, PB and PVDF pipes. Its mechanical feed and depth-stop system ensure repeatable penetration and alignment, improving assembly consistency across runs. Robust construction and straightforward controls make the units suitable for plumbing, drainage and industrial fluid transport workshops.

Applications

• Water supply systems
• Drainage and sewage systems
• Industrial fluid transport and processing

Technical specifications

• Models: Prisma125, Prisma160 (Prisma series)
• Working range: Prisma125 = 25–125 mm; Prisma160 = 75–160 mm
• Working temperature: 180–280 °C
• Applicable materials: HDPE, PP‑R, PPH, PB, PVDF
• Rated voltage: 220 VAC, 50/60 Hz
• Rated power: Prisma125 = 1400 W; Prisma160 = 2000 W
• Machine dimensions (working): Prisma125 = 1500 × 840 × 1260 mm; Prisma160 = 1600 × 900 × 1100 mm
• Transport case (wood) dimensions: Prisma125 = 1500 × 800 × 1300 mm; Prisma160 = 1600 × 920 × 1150 mm
• Machine weight: Prisma125 = 68–100 kg; Prisma160 = 78–110 kg
• Transport case weight: Prisma125 = 53 kg; Prisma160 = 60 kg
• Environmental temperature: −5 °C to 45 °C
• Warranty & services: 2-year quality warranty; technical support; CE certificate
