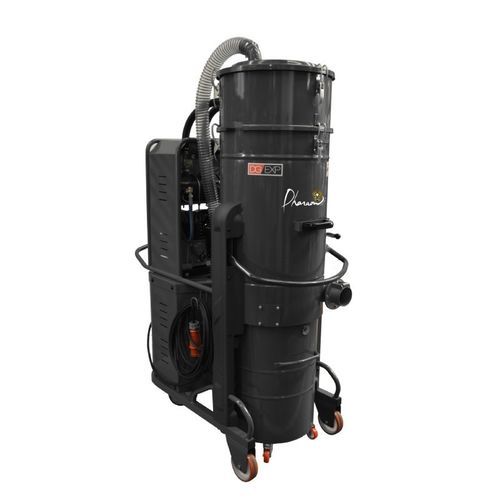

Industrial drum vac DG75 PN

dryfine dustdust

Overview
The DG75 PN industrial dust vacuum from Pharaon is equipment intended for extracting fine dust and light waste in industrial environments. Fitted with a side-channel blower powered by three-phase 400 V, it provides 7.5 kW and is designed for continuous operation (24/7). Its epoxy-painted steel structure is suited to dusty and demanding environments. The 100-litre collection tank is mounted on casters and can be detached easily for emptying without removing the filter or motor head.

Key points

• Side-channel blower, three-phase 400 V supply
• Motor power: 7.5 kW (maintenance-free motor)
• Designed for continuous 24/7 operation
• 100 L collection tank on casters, quick-release for emptying
• Epoxy-painted steel construction for industrial use

Filtration and cleaning
The DG75 PN integrates three antistatic cartridge filters class M (IEC 60335-2-69) offering a total filter area of 80 000 cm². The de-clogging system is pneumatic / compressed-air and enables automatic cleaning of the filters without interrupting suction, ensuring stable performance.

Applications and materials handled

• Suitable for potentially hazardous fine dusts (silica, metal residues)
• Various industrial applications: food industry, woodworking, metallurgy, construction sites, etc.
• Can handle rubble, dust, wood, textile fibers depending on configuration

Technical specifications

• Model: DG75 PN
• Brand: Pharaon
• Power: 7.5 kW (7 500 W)
• Voltage: 400 V (three-phase)
• Airflow: 530 m³/h
• Maximum vacuum: 3200 mmH₂O (value mentioned in description)
• Maximum vacuum (datasheet): 4000 mmH₂O
• Tank capacity: 100 L
• Filtration: 3 antistatic cartridge filters, class M (IEC 60335-2-69)
• Filter area: 80 000 cm²
• De-clogging system: pneumatic / compressed-air automatic cleaning
• Noise level: 75 dB(A) (description) / 76 dB (datasheet)
• Dimensions (HxWxD): 175 x 118 x 66 cm (also indicated as 66 x 118 x 175 cm)
• Weight: 170 kg
• Motor protection: IP55
• Materials: epoxy-painted steel
• Design: removable tank on casters for emptying without removing the filter or motor head
• Vacuum family: Industrial
