Industrial vacuum cleaner DG90 INVERTER

drydustfine dust

Summary
Three-phase DG90 INVERTER dust vacuum designed for continuous extraction of fine dust in demanding industrial environments. Suitable for silo extraction and integration into central vacuum systems.

Description

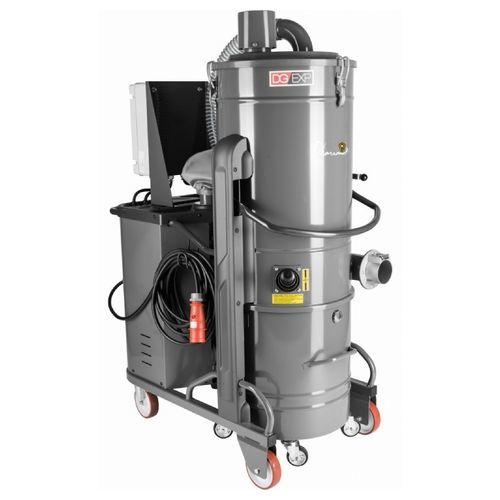

The DG90 INVERTER is an industrial three-phase vacuum equipped with an 8.6 kW motor, engineered for continuous heavy-duty operation. It delivers a high airflow of 910 m3/h and collects material in a 100 L wheeled container for ergonomic emptying. The motor has IP65 protection for 24/7 operation. The unit is intended for large volumes of fine dust and can be connected to a centralized extraction network.

Features and equipment

• 100 L collection container on castors for easy emptying.
• Directional robust wheels with brakes for improved mobility.
• Handle-operated filter deblinding system to maintain filtration efficiency.
• Filtration surface values published on the product page: 49,000 cm² (technical sheet) and 103,500 cm² (commercial description) — both figures are listed.
• Motor protection rating: IP65.

Recommended applications

• Food industry production lines
• Woodworking and sawmills
• Pulp and paper industry
• Silos and processes with high production of fine dust

Accessory note
Pharaon offers a range of dedicated accessories and kits to adapt the DG90 INVERTER to specific application requirements.

Technical specifications

• Model: DG90 INVERTER
• Motor power: 8.6 kW (8600 W)
• Max airflow: 910 m3/h
• Max vacuum: 3200 mmH2O
• Collection capacity: 100 L
• Sound level: 76 dB
• Filtration surface: 49,000 cm² (technical sheet); 103,500 cm² (commercial mention)
• Voltage: 400 V (three-phase)
• Motor protection: IP65
• Family: Industrial vacuum
