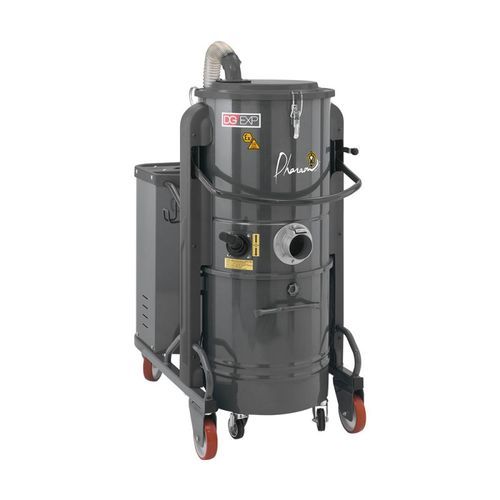

Industrial vacuum cleaner DG50 EXP Z22

drycombustible dustfine dust

Summary
Industrial three-phase vacuum for dust and waste DG50 EXP Z22. Operates as a centralised vacuuming unit.

Overview
The DG50 EXP Z22 industrial vacuum is a solution designed for continuous operation in industrial environments. Certified ATEX Zone 22 (compliant with UNI EN 17348:2022), it is suitable for food processing, paper/cardboard, aluminium and PVC processing, construction, automotive and mechanical workshops.

Key features

• Industrial-grade vacuum
• ATEX Zone 22 certified (safety for dust-explosive atmospheres)
• Designed for continuous operation
• Includes safety valve
• Mobile unit on multidirectional wheels
• 100 L detachable collection tank, compatible with direct bagging systems

Power and performance
Equipped with a three-phase 400 V motor (IP65 protection) with a self-ventilated side-channel blower. Available power ratings: 4 to 8.4 kW (example technical rating: 4000 W). Suction performance: maximum vacuum 3200/2600 mmH₂O and air flow 420 m³/h. Integrated safety valve to protect the motor; vacuum gauge for filter clogging monitoring.

Filtration system
Filtration via antistatic polyester pocket filter class M, filtration area 30,000 cm², suitable for fine dust. Filter cleaning by manual de-clogging handle. HEPA H14 absolute filter available as an option (99.995% efficiency by MPPS) to capture ultrafine particles down to 0.18 µm.

Design and handling
Epoxy-painted steel construction resistant to industrial impacts. Practical equipment: multidirectional wheels, 100 L recovery tank on rollers, detachable tank, optional direct bagging system, integrated cable holder to protect the power cable.

Typical applications

• Food processing
• Paper and cardboard industries
• Aluminium and PVC processing
• Construction and building
• Automotive
• Industrial mechanical workshops

Additional information
Dimensions: 66 x 118 x 145 cm. Weight: 137 kg. Machine designed for centralised suction and continuous duty cycles.

Technical data / specifications

• Model name: DG50 EXP Z22
• Certification: ATEX Zone 22 (compliant with UNI EN 17348:2022)
• Voltage: 400 V
• Motor power: 4 to 8.4 kW (example technical rating: 4000 W)
• Maximum vacuum (mmH₂O): 3200
• Maximum flow (m3/h): 420
• Tank capacity: 100 L
• Sound level (dB): 72
• Filtration area: 30,000 cm² (antistatic polyester pocket filter class M)
• Optional filter: HEPA H14 (99.995% efficiency MPPS, captures down to 0.18 µm)
• Filter cleaning: manual de-clogging by handle
• Motor protection: IP65
• Blower type: self-ventilated side-channel
• Structure: epoxy-painted steel
• Mobility: multidirectional wheels, tank on rollers, detachable tank
• Use: continuous operation, centralised suction, dust and industrial waste
• Dimensions (LxWxH): 66 x 118 x 145 cm
• Weight: 137 kg
• Vacuum family: Industrial
