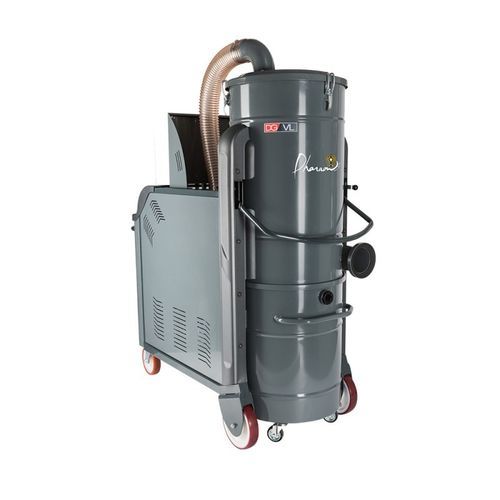

Industrial vacuum cleaner DGVL75 EX1/3D

dryhazardous dustdust

Summary
Industrial three-phase dust vacuum DGVL75 EX1/3D certified ATEX for industrial applications and heavy materials.

Key points

• Suitable for production lines
• Three-phase motor designed for continuous operation
• ATEX-certified anti-clogging system

Detailed description
The DGVL75 EX1/3D industrial vacuum is a three-phase unit engineered for dust extraction in ATEX zone 22 environments, certified to category 1/3D. It is intended for sectors where explosive dust management is critical, such as food, pharmaceutical, mechanical and aerospace industries. Its design and selected components provide a reliable solution for demanding industrial environments.

The suction unit uses a 7.5 kW side-channel blower, directly coupled to the motor without a transmission system. This configuration ensures powerful, continuous and quiet suction while minimizing maintenance needs. An integrated safety valve provides optimal motor cooling during intensive operation, making the unit suitable for long work cycles without interruption.

With a maximum vacuum of 2 700 mmH₂O and a high airflow of 700 m³/h, the DGVL75 EX1/3D handles large volumes of dust, including heavy or suspended particles. The 120 mm air inlet combined with a 160‑litre AISI 304 stainless steel collection tank offers substantial capacity and convenient waste handling. The tank is removable and mounted on wheels for quick and safe emptying, even with bulky materials.

The filtration system features an antistatic polyester pocket filter, class M, with a filtering surface of 70 000 cm², and an absolute HEPA H14 filter of 52 000 cm², capable of retaining 99.995% of fine particles down to 0.18 µm, ensuring clean air at the unit outlet even in sensitive areas.

A semi-automatic unclogging system (pneumatic cylinder producing a rapid vertical movement) maintains filtration performance without long stoppages. The unit includes a tangential tank inlet with an integrated separation cyclone to optimize dust separation and reduce filter contact, extending filter life. The assembly is mounted on a robust steel chassis with industrial wheels for mobility across different floor types.

Technical specifications

• Model: DGVL75 EX1/3D
• Certifications: ATEX zone 22, category 1/3D
• Blower: Side-channel blower 7.5 kW
• Maximum vacuum (mmH₂O): 2700
• Maximum airflow (m3/h): 700
• Tank capacity (Lt): 160
• Tank: AISI 304 stainless steel, removable, mounted on wheels
• Air inlet (mm): 120
• Primary filter: Antistatic polyester pocket filter, class M (filtering surface 70 000 cm²)
• Absolute filter: HEPA H14 (surface 52 000 cm²), efficiency 99.995% down to 0.18 µm
• Unclogging system: Semi-automatic with pneumatic cylinder
• Separation: Tangential tank inlet with integrated cyclone
• Chassis: Robust steel
• Mobility: Industrial wheels
• Dimensions (LxWxH cm): 180 x 77 x 200
• Weight (kg): 200
• Sound level (dB(A)): 72
