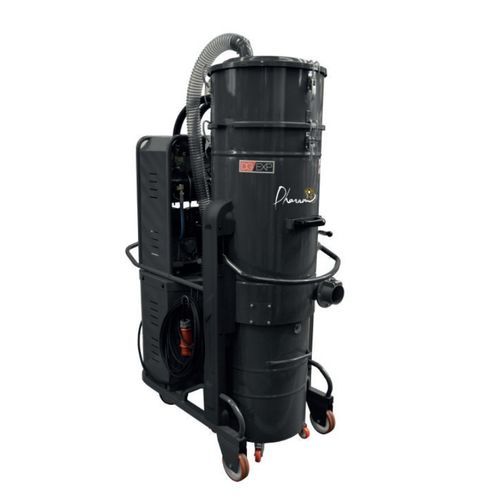

Industrial vacuum cleaner Z22 DG75 AF PN

dryfine dustcombustible dust

Overview
The Z22 DG75 AF PN is a high-flow three-phase industrial vacuum specifically designed for intensive applications and dust-related explosive atmospheres. Compliant with ATEX Zone 22 and UNI EN 17348:2022, it is suitable for integration into central vacuum networks and intended for demanding sectors (foundries, steelworks, PVC/aluminium processing, food industry, construction, mechanical industries).

Key features

• Motor protection IP65 for enhanced dust protection.
• High air flow and strong suction performance for handling large volumes of fine dust and industrial waste.
• Design suited to heavy-duty and continuous industrial use.

Filtration and safety

• Compliant with ATEX Zone 22 (designed for potentially explosive dust atmospheres).
• Filtration system with three large-surface antistatic cartridge filters in polyester, M class, suitable for dry and explosive dusts.
• Automatic filter cleaning system (PN) to maintain continuous filter efficiency.
• High-efficiency HEPA H14 absolute filter capable of retaining particles down to 0.18 µm.
• Integrated safety valve to prevent overheating.
• Built-in vacuum gauge (evacometer) for monitoring filter loading and proactive maintenance management.

Blower and motorization

• Side-channel blower directly coupled to the motor (no transmission system) ensuring quiet, continuous and maintenance-free operation.
• Motor protected against dust (IP65 rating).

Ergonomics and handling

• Large-capacity collection drum mounted on casters, detachable and equipped with a handle for easy emptying even with large volumes.
• Compatible with direct bagging systems for clean discharge without recontamination.
• Mobility ensured by multidirectional wheels.
• Rear cable holder to protect the power cable and improve ergonomics.

Construction

• Industrial steel structure with epoxy paint finish providing durability suited to demanding industrial environments.

Characteristics / technical specifications

• Max vacuum (mmH2O): 3200
• Max flow (m3/h): 700
• Capacity (L): 100
• Sound level (dB): 74
• Filter surface (cm²): 80000
• Voltage (V): 400
• Power (W): 7500
• Vacuum family: Industrial
