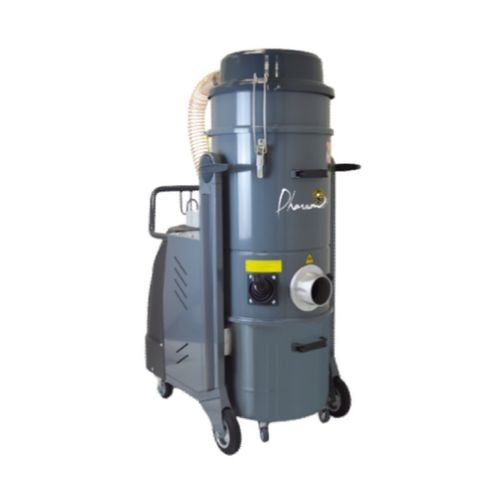

Industrial vacuum cleaner MTL4533 Z2/22

dryhazardous dustdust

Summary
The MTL4533 Z2/22 is a compact, safety-rated industrial vacuum cleaner designed for extraction of dust and debris in hazardous environments. Suitable for ATEX Zone 22 (dust) and Zone 2 (gas), it complies with UNI EN 17348:2022 and carries dual ATEX 3GD marking for use in potentially explosive atmospheres.

Construction and application areas
Robust epoxy-painted steel construction. Typical applications: chemical industry, electronics, laboratories, manufacturing workshops and industrial sites where compactness and mobility are required.

Motor and operation
The unit is driven by a side-channel blower, quiet and without mechanical transmission, suitable for continuous operation. The motor is dust-protected (IP65) and includes a safety valve against overheating.

Filtration system
The filtration package is designed to ensure clean exhaust air and stable performance:

• Primary filter: antistatic polyester pocket filter (class M) with large filtration area.
• Filter cleaning: manual handle cleaning system for quick filter maintenance.
• Absolute filter: HEPA H14 (99.995% MPPS) to capture particles down to 0.18 µm.

Use and handling
Easy to maneuver and maintain: multidirectional wheels, rear push handle, removable 45 L collection container with drain handle. Integrated cable storage to keep the workstation tidy and safe.

Accessories supplied

• Screw-on sleeve SL.0014.0000 (reference SL.0014.0000)
• Flat aluminium nozzle TA.0023.0000 (reference TA.0023.0000)

Key features

• Very compact and quiet.
• Removable wheeled collection container (45 L).
• Designed for continuous use (three-phase power).
• Certified ATEX Z22 / Z2, dual ATEX 3GD marking.

Technical characteristics / specifications

• Model: MTL4533
• Maximum vacuum (mmH2O): 3200
• Maximum flow (m3/h): 318
• Capacity: 45 L
• Noise level: 69 dB
• Filtration surface area: 20 000 cm²
• Voltage: 400 V (three-phase)
• Power: 3000 W
• Primary filter: Polyester - ANT PTFE (antistatic)
• Filter cleaning system: Manual
• Absolute filtration HEPA H14: Standard (performance 99.995% MPPS)
• Vacuum family: Industrial
