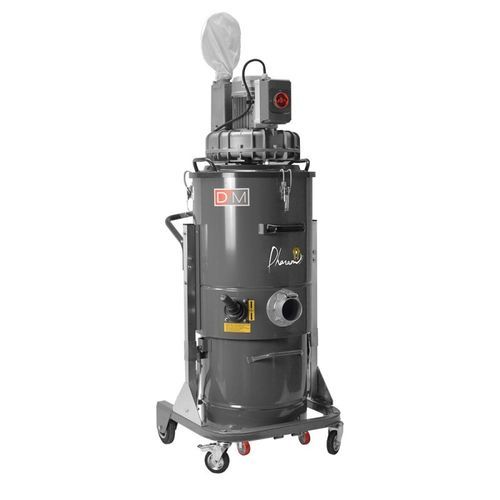

Industrial blower vacuum cleaner Z22 ZFRELMN

dryhazardous dustdust

Overview
The Z22 ZFRELMN industrial vacuum is designed for safe dust and debris extraction in ATEX Zone 22 environments. It is suitable for food, pharmaceutical, chemical, wood and plastics industries. The unit features a side‑channel blower and an IP65 motor with integrated safety valve for protection against dust and water ingress.

Main features

• Epoxy‑coated steel structure mounted on wheels for mobility.
• Detachable 60 L tank for quick and secure emptying.
• Filtration: antistatic polyester pocket filter (30,000 cm²) with manual cleaning. HEPA H14 absolute filtration available as an option for high‑hygiene environments.
• Side‑channel blower provides continuous suction adapted to fine, heavy or volatile dusts.

Applications

• Food industry
• Pharmaceutical
• Chemical industry
• Wood processing
• Plastics industry

Accessories supplied

• Threaded sleeve SL.0014.0000
• Flat aluminum nozzle TA.0023.0000

Technical specifications

• Model: Z22 ZFRELMN
• ATEX: Zone 22
• Power: 2.2 kW (2200 W)
• Blower type: side‑channel blower
• Airflow: 318 m³/h
• Sustained vacuum indicated: 1900 mmH2O
• Maximum vacuum (datasheet): 2500 mmH2O
• Tank capacity: 60 L
• Filter area: 30,000 cm²
• Cleaning system: manual
• Primary filter class: L
• HEPA H14 absolute filter: optional
• Motor: IP65, integrated safety valve
• Dimensions: 79 × 66 × 170 cm
• Sound level (operational value): 70 dB(A) — (datasheet value): 76 dB
• Electrical configuration: versions available — single‑phase 230 V or three‑phase 400 V (depending on configuration)
• Product family: Industrial vacuum
• Weight: 90 kg
