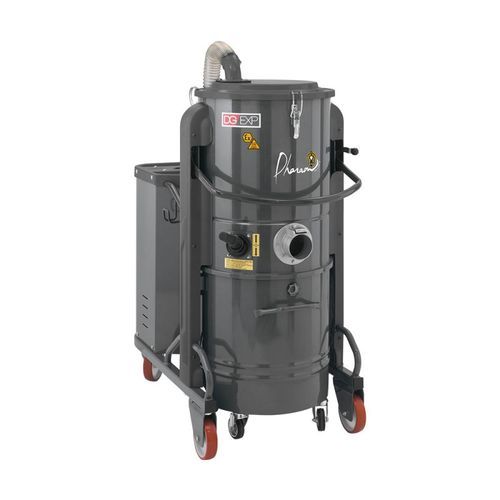

Industrial drum vac DG70 EXP Z22

drydustcombustible dust

Overview
The DG70 EXP Z22 industrial dust vacuum is engineered for hazardous industrial environments with ATEX Zone 22 certification for the safe extraction of potentially explosive dusts. Suitable for aluminium, PVC, construction, mechanical workshops and heavy industry. It features a high-performance three-phase motor and a robust design for continuous operation.

Main functional features

• ATEX Zone 22 certification for explosive atmospheres.
• High-performance three-phase motor (5.5 to 11.1 kW) designed for continuous use.
• Side-channel blower (turbine) without mechanical transmission for quiet and reliable operation.
• IP65 protection rating for the motor (dust and water ingress protection).
• Integrated safety valve to prevent overheating.
• Built-in vacuum gauge for real-time filter status monitoring and performance optimization.
• Main filtration: antistatic polyester pocket filter, class M (very large surface area for fine dust capture).
• Manual filter cleaning (de-dusting) by handle for regular maintenance of the filter medium.
• Optional final filter: HEPA H14 (99.995% MPPS) available as replacement/upgrade for ultra-fine filtration (particles ≥ 0.18 µm).
• Detachable 100 L tank on castors for easy emptying and handling, with option for direct bagging of residues.
• Mobile chassis: two large fixed wheels and two swivel castors for improved mobility.
• Rear cable storage for a safe workstation.

Benefits and applications

• Designed for extraction of heavy waste and industrial dusts.
• Built for intensive use in high-production environments.
• Versatile: compatible with a wide range of materials (dust, rubble, wood, etc.) depending on configuration and filtration options.

Additional information
High maximum vacuum and significant airflow ensure suction power suitable for heavy industrial environments. Industrial-grade steel construction with epoxy paint provides resistance to impacts and wear.

Technical specifications

• Model: DG70 EXP Z22
• Certification: ATEX Zone 22
• Motor: three-phase, nominal power between 5.5 and 11.1 kW (depending on configuration)
• Reported electrical power: 5 500 W (value shown in technical data)
• Voltage: 400 V (three-phase)
• Maximum vacuum: 3600 mmH2O (reported value)
• Max airflow: 530 m³/h
• Tank capacity: 100 L (detachable tank on castors)
• Filter surface (reported values): polyester antistatic pocket filter surface stated in the description 36,000 cm²; technical table shows 30,000 cm²
• Final filter option: HEPA H14 (optional surface 32,000 cm², efficiency 99.995 % MPPS, captures down to 0.18 µm)
• Noise level: 72 dB
• Weight: 150 kg
• Dimensions (L x D x H): 66 x 118 x 145 cm
• Mobility: chassis with 2 large fixed wheels and 2 swivel castors
• Filter cleaning system: manual de-dusting by handle
• Construction: epoxy-painted steel (industrial-grade structure)
• Typical applications: aluminium, PVC, construction, heavy industry, mechanical workshops (hazardous industrial environments)
