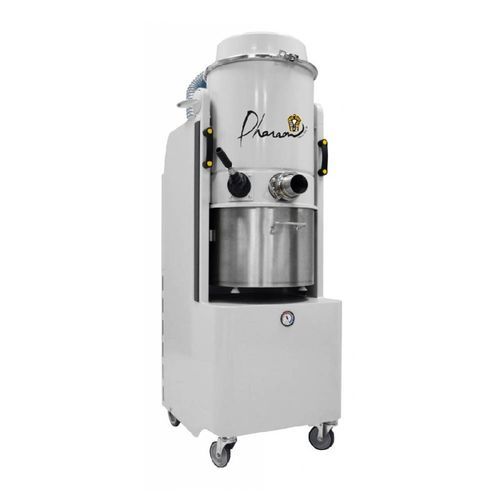

Industrial vacuum cleaner Z22 PHARMA 40.40

dryhazardous dustdust

Summary
Industrial vacuum compliant with pharmaceutical industry requirements, suitable for cleanrooms and laboratories in ATEX zone 22. Designed for high hygiene and safety, hygienic collection of hazardous dust and compatible with disposable safety bags.

Key points

• ATEX zone 22 certification, suitable for pharmaceutical environments and cleanrooms
• Bag-In Bag-Out system for safe filter replacement
• Hygienic stainless-steel tank for fast and thorough cleaning

Technical details and description
The Z22 PHARMA 40.40 is a three-phase industrial vacuum certified ATEX zone 22, developed for the pharmaceutical industry and environments requiring strict hygiene. Its side-channel blower, without a transmission system, ensures quiet, reliable and continuous operation. A vacuum-limiting valve protects the motor and extends service life.
The AISI 304 stainless-steel tank is polished inside and satin-finished outside to facilitate cleaning and prevent residue buildup; the tank is indicated as 45 litres while the technical capacity is listed separately (see specifications).
Filtration combines a primary antistatic polyester pocket filter (category M, surface 20,000 cm², diameter Ø 420 mm) capable of capturing fine dust down to 1 μm, and an absolute HEPA H14 filter (surface 20,500 cm²) retaining 99.995% of particles down to 0.18 μm according to MPPS. The assembly is integrated into a Bag-In Bag-Out system allowing filter replacement without direct operator exposure to toxic dust.
A manual de-dusting handle maintains suction performance. Compatible with disposable safety bags for clean and hygienic collection and disposal.

Characteristics / technical specifications

• Certification: ATEX zone 22
• Use: pharmaceutical industry, cleanrooms, laboratories
• Blower: side-channel (no transmission system)
• Motor protection: vacuum-limiting valve
• Tank: AISI 304 stainless steel, polished inside and satin-finished outside
• Tank (mentioned in description): 45 litres
• Capacity (technical sheet): 42 Lt
• Max vacuum (mmH2O): 3200
• Max flow (m3/h): 420
• Sound level (dB): 69
• Filter surface (cm²) (primary): 20,000
• Primary filter: antistatic polyester pockets category M (surface 20,000 cm², Ø 420 mm) — captures down to 1 μm
• Absolute filter: HEPA H14 (surface 20,500 cm²) — 99.995% efficiency down to 0.18 μm (MPPS)
• Filtration / maintenance system: Bag-In Bag-Out; manual de-dusting by handle
• Power (W): 3000
• Voltage (V): 400
• Vacuum family: Industrial
• Bags / collection: compatible with disposable safety bags
