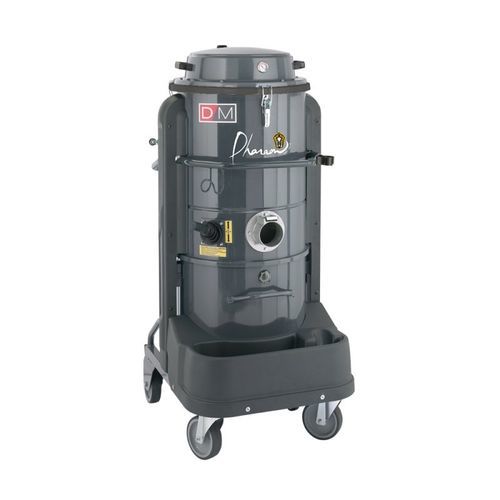

Industrial vacuum cleaner DM AIREX 19V 1/3D

drydustcombustible dust

Summary
The DM AIREX 19V 1/3D is an ATEX industrial vacuum cleaner designed for the collection of combustible dusts in ATEX zones 20 (indoor) and 22 (outdoor). This compact, robust unit operates solely on compressed air (no electrical supply) and provides sustained suction suitable for explosive atmospheres and dry, volatile, flammable dusts.

Operation
The unit uses a multi-nozzle venturi system fed by compressed air (6 bar) with an air consumption of 1,530 L/min. It achieves high maximum vacuum and a significant air flow for remote extraction without an electric motor (reducing spark risk).

Filtration

• Primary filter: antistatic polyester pocket filter, category M, filtration area 30,000 cm².
• Absolute filter HEPA H14 (optional): area 26,000 cm², retention 99.995% for particles ≥ 0.18 µm.
• Cleaning system: manual handle-operated de-dusting allowing removal of accumulated dust without opening the unit and without resuspending particles.

Construction and collection
Epoxy-painted steel structure with metal head protected against impacts and external contaminants. Detachable 100 L tank on casters for easy emptying and handling; mobile and maneuverable unit suitable for mobile industrial sites or confined spaces.

Typical applications
Industries handling dry, flammable residues: optics, electronics, painting, blasting, ship maintenance, etc.

Technical characteristics / specifications

• Model: DM AIREX 19V 1/3D
• Type: ATEX industrial vacuum operating on compressed air (no electrical supply)
• ATEX zones: Zone 20 (indoor) / Zone 22 (outdoor)
• Suction principle: multi-nozzle venturi system
• Supply: compressed air 6 bar
• Air consumption: 1,530 L/min
• Maximum vacuum: 5,000 mmH₂O
• Maximum air flow: 465 m³/h
• Tank capacity: 100 L
• Primary filter: antistatic polyester pocket filter category M, area 30,000 cm²
• Absolute filtration: HEPA H14 (option) — 26,000 cm², retention 99.995% ≥ 0.18 µm
• Cleaning system: manual (handle)
• Dimensions: 62 x 62 x 160 h (cm)
• Sound level: 74 dB
• Weight: 80 kg
• Air inlet: 80 mm
• Product family: Industrial vacuum cleaner
