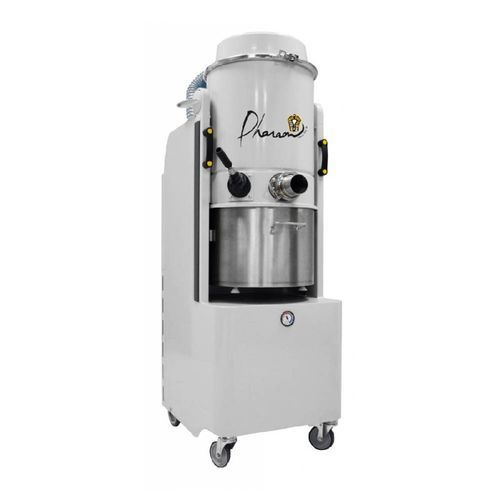

Industrial vacuum cleaner Z22 PHARMA 40.30

dryhazardous dustfine dust

Presentation
The Z22 PHARMA 40.30 is a three-phase industrial vacuum certified ATEX zone 22, designed for the pharmaceutical industry, cleanrooms and laboratories. It combines hygienic materials and design with safety features adapted to hazardous dusts.

Main functional features

• ATEX zone 22 certified, suitable for pharmaceutical-risk environments.
• Side-channel blower without transmission for quiet, continuous operation.
• Vacuum-limiting valve included to protect the motor.
• Bag-In Bag-Out system enabling safe filter replacement without operator exposure.

Hygienic design and tank
Tank in AISI 304 stainless steel, polished inside and satin-finished outside, with welded bottom without joint for complete and rapid cleaning, minimizing retention areas and facilitating operations in pharmaceutical environments.

Filtration system
Two-stage filtration integrated into the Bag-In Bag-Out system:

• Primary polyester antistatic pocket filter, category M (surface 20 000 cm², diameter Ø 420 mm) to capture fine dust.
• Absolute HEPA H14 filter of 20 500 cm² (efficiency 99.995% according to MPPS method on particles down to 0.18 μm).

Collection and maintenance
Tank capacity 42 litres. Possibility to use secure disposable bags. Manual de-clogging system operated by handle to maintain suction performance without dispersing dust into ambient air.

Mobility and robustness
Compact and robust, mounted on high-quality industrial wheels for excellent maneuverability in production areas.

Applications
Designed for the pharmaceutical industry, cleanrooms, laboratories and environments requiring strict hygiene control and ATEX safety management.

Characteristics / technical specifications

• Model: Z22 PHARMA 40.30
• ATEX certification: zone 22
• Type: Three-phase industrial vacuum
• Blower: side-channel without transmission
• Valve: vacuum-limiting valve included
• Tank: AISI 304 stainless steel, polished inside, satin-finished outside, welded bottom without joint
• Tank capacity: 42 litres
• Primary filter: polyester antistatic pockets, category M, surface 20 000 cm², Ø 420 mm
• Absolute filter: HEPA H14, surface 20 500 cm², efficiency 99.995% (MPPS) down to 0.18 μm
• Filter replacement system: Bag-In Bag-Out
• De-clogging: manual by handle
• Sound level: 69 dB
• Max vacuum (mmH2O): 3200
• Max flow (m3/h): 318
• Filtration surface (cm²): 20000
• Voltage (Volts): 400
• Power (W): 3000
• Family: Industrial vacuum
