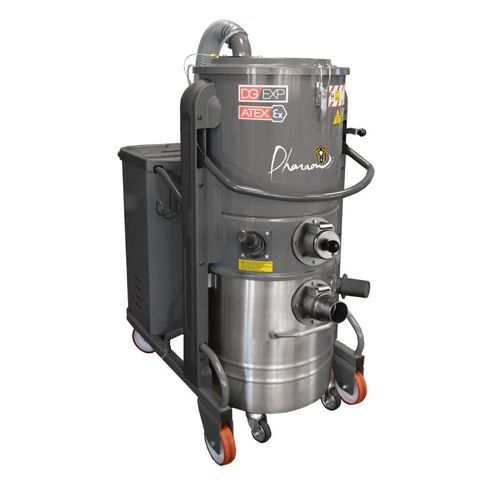

Industrial vacuum cleaner EXP50 INERT

drywetdust

Summary
The EXP50 INERT is an ATEX Zone 22 certified three-phase industrial vacuum cleaner with liquid-bath inerting (water or oil), M-class primary filtration and HEPA H14 absolute filter, and a 44 L AISI 304 stainless steel tank.

Description
The EXP50 INERT is a three-phase industrial vacuum designed for the safe collection of combustible or reactive dusts. Its liquid-bath inerting system immerses captured particles to eliminate the risk of ignition or explosion. Compliant with UNI EN 17348:2022, it is suitable for sensitive metal, chemical and pharmaceutical powders. The suction unit features a side-channel blower directly coupled to the motor for quiet, continuous 24/7 operation. A safety valve provides motor cooling. Filtration combines an antistatic polyester pocket primary filter (M class, 30,000 cm², Ø 500 mm) compliant with IEC 60335-2-69 and an absolute HEPA H14 filter (26,000 cm²) capturing 99.995% of particles down to 0.18 μm (MPPS). A vacuum gauge (evacuometer) monitors filter condition and a manual handle cleaning system maintains suction performance. The 44 L AISI 304 stainless tank (37 L reserved for inerting liquid) is mounted on a robust chassis with industrial wheels. The inerting kit includes a removable deflector tube, PPL oil-mist filter, stainless basket and three fiber filters. Compact, robust design for hazardous environments requiring certified safe extraction.

Key points

• Liquid-bath inerting (water or oil) to neutralize reactive particles.
• ATEX Zone 22 certification.
• Combined filtration: M-class primary pocket filter + HEPA H14 absolute filter.

Technical specifications

• Model: EXP50 INERT
• Certification: ATEX Zone 22
• Standard: UNI EN 17348:2022
• Vacuum type: three-phase industrial
• Voltage (V): 400 V
• Power (W): 3000 W
• Max airflow (m3/h): 420
• Max vacuum (mmH2O): 3200
• Capacity (L): 44 (37 L for inerting liquid)
• Filter area (cm²): 30,000
• Primary filter: antistatic polyester pocket, M class (ANT M), Ø 500 mm, area 30,000 cm²
• Absolute filter: HEPA H14, 26,000 cm², efficiency 99.995% down to 0.18 μm (MPPS)
• Cleaning system: manual handle
• Vacuum gauge: present (filter monitoring)
• Tank: AISI 304 stainless steel
• Included elements: removable deflector tube, PPL oil-mist filter, stainless basket, 3 fiber filters
• Blower: side-channel, motor directly coupled
• Motor safety: safety valve for cooling
• Air inlet (mm): 50
• Sound level (dB): 72
• Dimensions: 66×118×145 cm
• Weight (meta): 95 kg
• Weight (alternative): 137 kg
• Recommended use: metal, chemical, pharmaceutical powders and other combustible or reactive dusts
