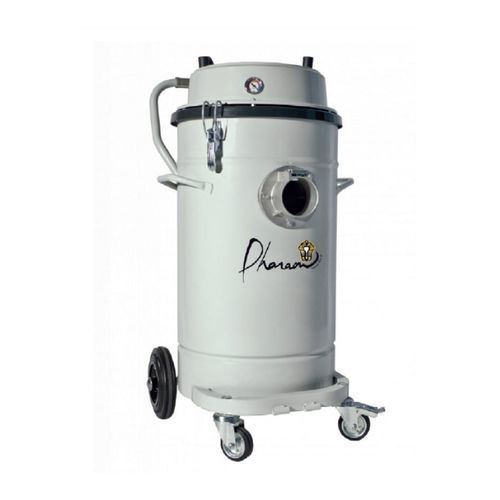

Industrial vacuum cleaner 802 WD AIREX 7V 1/3D

drywetliquids

Overview
The 802 WD AIREX 7V 1/3D is a compact, efficient vacuum solution designed for ATEX environments (zone 20 inside tank and zone 22 outside). It runs entirely on compressed air using a multi-nozzle Venturi system, so no electric motor is required, making it suitable for explosion-risk areas caused by dust or vapours. The design is based on a maintenance-free suction unit protected within a robust steel head. It handles both dust and liquids thanks to a dual filtration system: an antistatic polyester filter class M for fine dust and a 300 μm polypropylene liquid filter with a safety float to prevent overflow.

Benefits & features

• Operates on compressed air via a multi-nozzle Venturi system (no electrical components).
• Maintenance-free suction unit; robust steel head for durability and reduced noise.
• Dual filtration: antistatic polyester class M filter for fine dust and 300 μm polypropylene filter for liquids.
• Includes a safety float to protect against overflow.
• Compact and mobile: industrial wheels (2 large rear, 2 multidirectional front) and an ergonomic push handle for manoeuvrability on all floor types.
• Convenient drain hose located at the rear for simple, clean liquid evacuation without disassembly.

Typical applications
Industrial use for safe extraction of dust and liquids in mechanical, food, pharmaceutical and other sensitive environments requiring a motorless solution.

Technical data / specifications

• Model: 802 WD AIREX 7V 1/3D
• Dimensions: 62 x 53 x 108 cm (h)
• Maximum suction (mmH₂O): 3700
• Maximum flow (m3/h): 150
• Capacity: 80 L
• Noise level (dB): 68
• Filter area: 5000 cm²
• Vacuum family: Industrial
• Air inlet (mm): 80
