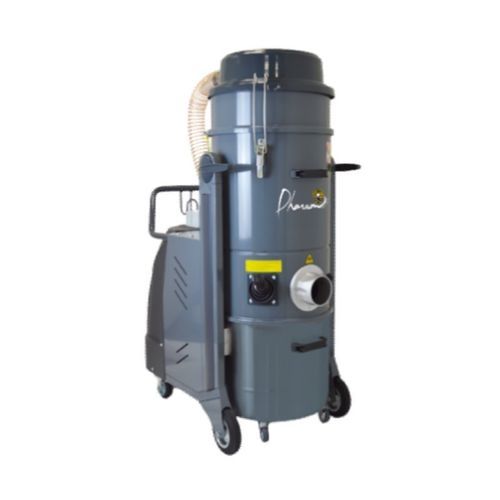

Industrial vacuum cleaner MTL4534 Z22

dryhazardous dustdust

Overview The MTL4534 Z22 is a three-phase industrial vacuum certified ATEX Zone 22, designed for continuous extraction of potentially explosive dusts in industrial environments. It is compact and can operate 24/7 with reduced maintenance thanks to a direct motor/fan coupling without transmission.

Main functions Compact and powerful three-phase vacuum adapted to ATEX zones for collection of dust and waste. Detachable 45 L recovery tank, easy emptying on casters and quick-release system without disassembly of the motor or filtration system. Usable standalone or integrated into a central extraction network.

Filtration and safety

• Main filter: antistatic pocket filter, M class (1 µm).
• Unblocking system: manual filter de-clogging using a handle.
• Motor protection: IP65 and integrated safety valve to prevent overpressure.
• Compliant with ATEX Zone 22 for safe operation in potentially explosive dust atmospheres.

Performance

• Airflow: 318 m³/h.
• Maximum vacuum: up to 3200 mmH₂O.
• Motor power: side-channel blower, 3 kW.

Supplied accessories (examples shown)

• Screw-on sleeve SL.0014.0000.
• Flat aluminium nozzle TA.0023.0000.

Applications Designed for extraction of dusts, hazardous dusts and waste in industrial sectors requiring ATEX-certified solutions; suitable for continuous operation and for integration into a central extraction network.

Technical characteristics / specifications

• Model: MTL4534 Z22
• Vacuum family: Industrial
• ATEX zone: 22 ATEX
• Motor type: side-channel blower, direct motor/fan coupling
• Power (W): 3000
• Voltage (Volts): 400
• Max flow (m³/h): 318
• Max vacuum (mmH₂O): 3200
• Tank capacity (Lt): 45
• Filter surface (cm²): 20000
• Sound level (dB): 69
• Main filter: antistatic pocket filter M class (1 µm)
• Unblocking system: Manual (handle)
• HEPA H14 absolute filtration: option
• Motor protection: IP65
• Integrated safety valve
• Weight: 85 kg
• Continuous operation: 24/7
