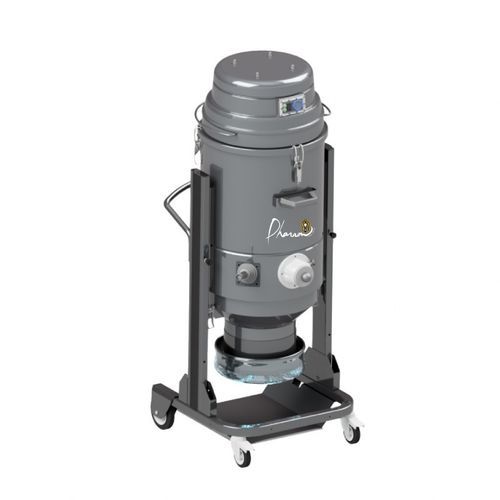

Industrial vacuum cleaner DM2EL 1/3D LP

dryfine dustdust

Overview
Single-phase industrial vacuum cleaner certified for ATEX zones 20 (indoor) and 22 (outdoor). Equipped with a brushless (no-brush) by-pass motor, designed to collect hazardous or toxic dusts in classified areas. Integrated Longopac continuous bagging for hygienic, contact-free disposal.

Recommended applications

• Construction
• Woodworking
• Aeronautics
• Food industry
• Chemicals

Bagging system
Longopac continuous bagging system ensures hygienic dust evacuation with zero operator contact. Each 20 m roll provides approximately 50 collection cycles, suitable for frequent emptying, confined spaces and mobile interventions.

Motor and performance
By-pass motor 2.2 kW (single-phase). Maximum vacuum 2,500 mmH₂O. Maximum airflow 360 m³/h. 80 mm inlet for large-diameter hoses.

Filtration
Two-stage filtration:

• Primary filter: antistatic polyester bag filter, category M — filter area 30,000 cm² (captures common dusts).
• Absolute filter: HEPA H14 — filter area 26,000 cm², retention 99.995% down to 0.18 μm (secure handling of fine, toxic or hazardous dusts).

Functions and maintenance

• Manual filter shaker (handle) to restore filtration efficiency without complex disassembly.
• Integrated vacuum gauge indicating real-time clogging status.
• Longopac system for maximal hygiene and zero dust contact.
• Epoxy-painted steel chassis and heavy-duty industrial wheels (two multidirectional with brakes) for site mobility.
• Design adapted to ATEX environments for safe operation in classified areas.

Technical specifications

• Model: DM2EL1/3D LP
• Certification: ATEX (zones 20 indoor / 22 outdoor)
• Max vacuum (mmH₂O): 2500
• Max airflow (m3/h): 360
• Collection: Longopac continuous bagging
• Sound level (dB): 74
• Filter area (cm²): 30000 (bag filter)
• Voltage (Volts): 230
• Power (W): 2300 (2.2 kW)
• Primary filter: Antistatic polyester bag filter (category M)
• Absolute filtration: HEPA H14 — area 26,000 cm² — retention 99.995% down to 0.18 μm
• Depulverisation system: Manual (handle)
• Weight (kg): 72
• Air inlet (mm): 80
• Motor: By-pass 2.2 kW (single-phase) / brushless motor mentioned in product description
• Vacuum family: Industrial
