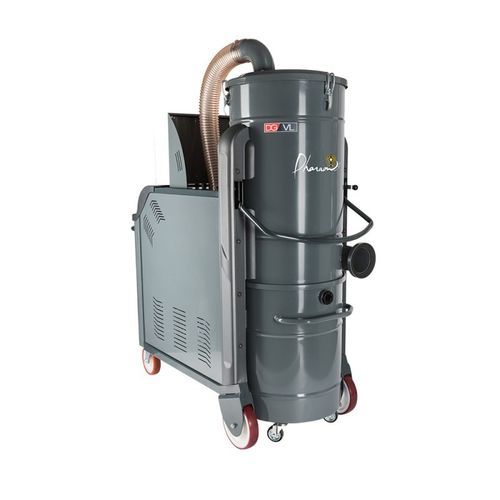

Industrial vacuum cleaner DGVL125 EX1/3D

dryhazardous dustdust

Overview
The DGVL125 EX1/3D is a three-phase industrial vacuum cleaner certified ATEX category 1/3D, designed for extraction of hazardous and combustible dusts in ATEX Zone 22. It delivers high performance, safety features and long autonomy for continuous use on production lines and waste handling areas.

Recommended applications

• Food processing
• Pharmaceutical
• Precision engineering
• Aerospace
• Areas with combustible or hazardous dust

Key features

• Side-channel blower 18.5 kW direct-coupled to the motor (no mechanical transmission) for powerful, stable and low-noise suction appropriate for continuous heavy-duty operation.
• Three-phase motor rated for continuous operation.
• ATEX-certified semi-automatic cleaning system (pneumatic cylinder providing vertical shocks to the filter with programmable cycles).
• PTC temperature probe monitoring and integrated safety valve for motor cooling.
• Tangential air inlet with integrated cyclone to optimise particle separation and reduce filter loading.
• 160 L stainless steel collection tank mounted on wheels for fast, hygienic emptying.
• Industrial design for mobility and durability.

Filtration

• Antistatic polyester bag filter, class M, filtration area 70,000 cm² to capture dust and limit static build-up.
• Absolute HEPA H14 filter, area 103,500 cm², declared retention 99.995% of particles down to 0.18 µm, ensuring high exhaust air quality.

Cleaning system and maintenance
Semi-automatic ATEX-certified cleaning via a pneumatic cylinder that applies rapid vertical shocks to the filter. The operator can schedule cleaning cycles to maintain consistent performance and reduce manual interventions.

Technical specifications

• Model: DGVL125 EX1/3D
• ATEX category: 1/3D (suitable for Zone 22)
• Blower: side-channel, power 18.5 kW
• Motor: three-phase, suitable for continuous operation
• Maximum vacuum (mmH2O): 3,100
• Maximum flow (m3/h): 1,100
• Tank capacity (L): 160
• Air inlet (mm): 120
• Filter area (cm²): 70,000 (antistatic polyester bag filter)
• Absolute filter: HEPA H14, area 103,500 cm², retention 99.995% to 0.18 µm
• Sound level (dB): 78
• Dimensions (mm): 180 x 77 x 200 (H)
• Weight (kg): 200
• Separation system: tangential inlet with integrated cyclone
• Cleaning system: semi-automatic, pneumatic cylinder
• Tank: stainless steel, wheeled for mobility
