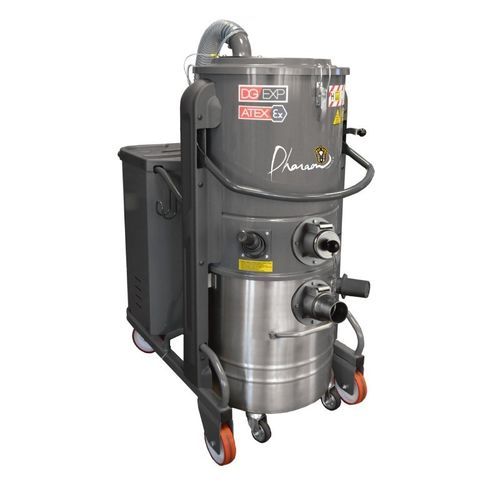

Industrial vacuum cleaner EXP70 INERT

wethazardous dustdust

Overview
The EXP70 INERT is a three-phase industrial vacuum certified ATEX Zone 22, specifically designed for the safe extraction of combustible or reactive dusts in hazardous industrial environments. Robust construction with an AISI 304 stainless steel tank and epoxy-painted steel chassis for durability, mechanical resistance and hygiene.

Inerting system and safety
Inerting by neutralising liquid bath (water or oil) compliant with UNI EN 17348:2022, immersing captured particles to eliminate any ignition or explosion risk. Integrated safety valve ensures continuous motor cooling and prevents overheating.

Suction unit & performance
Suction unit based on a side-channel blower directly coupled to the motor, with technical documentation indicating motor power of 5.5 kW and stated performance: maximum vacuum 3,200 mmH2O (2,600 mmH2O continuous) and airflow 520 m3/h.

Filtration and control
Primary filtration by antistatic polyester pocket filters, category M (filter area 30,000 cm², Ø 500 mm, loading 173 m²/m³/h) complemented by an absolute HEPA H14 filter of 26,000 cm² (efficiency 99.995% MPPS). Control equipment: vacuum gauge to monitor filter condition and manual unclogging system operated by a handle. Includes a PPL filter for oil mist, three fiber filters and a stainless steel basket.

Tank and mobility
AISI 304 stainless tank of 44 litres (37 L dedicated to inerting liquid) equipped with a removable deflector tube. Assembly mounted on a mobile chassis with industrial wheels for manoeuvrability and stability even on difficult floors.

Certifications & applications
ATEX Zone 22 certification. Designed for metal powders, chemical and pharmaceutical powders and other combustible or reactive dusts.

Technical characteristics / specifications

• Model: EXP70 INERT
• Certification: ATEX Zone 22
• Materials: AISI 304 stainless tank, epoxy-painted steel chassis
• Tank capacity: 44 litres (37 L for inerting liquid)
• Weight: 137 kg
• Dimensions: 66 × 118 × 145 cm
• Maximum vacuum: 3,200 mmH2O (2,600 mmH2O continuous)
• Maximum airflow: 520 m3/h
• Sound level: 72 dB
• Filter area: 30,000 cm²
• Voltage: 400 V
• Power (technical mention): 3,000 W (product documentation also refers to a 5.5 kW motor for the suction unit)
• Primary filter: antistatic polyester pocket filters, category M (ANT M)
• Absolute filter: HEPA H14 (26,000 cm², 99.995% MPPS)
• Inerting system: neutralising liquid bath (water or oil) compliant with UNI EN 17348:2022
• Cleaning system: manual unclogging by handle
• Air inlet: Ø 50 mm
• Included/integrated accessories: removable deflector tube, PPL filter for oil mist, stainless basket, three fiber filters
