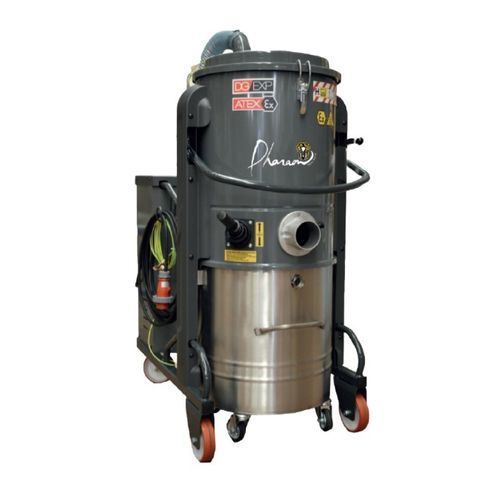

Industrial vacuum cleaner DG30EXP 1/2D

dryhazardous dustdust

Overview
Industrial three-phase DG30EXP 1/2D vacuum cleaner certified ATEX, intended for environments with hazardous dust (zones 21 and 22). Category 1/2D certification allowing use in zone 20 inside the tank. Designed for intensive continuous industrial use.

Detailed description
The DG30EXP 1/2D is fitted with a side-channel blower directly coupled to the motor (no belt or transmission) to provide powerful, steady, quiet and maintenance-free suction. An integrated safety valve ensures motor cooling and contributes to long service life. The de-dusting system is manual via a dedicated handle, allowing filter cleaning during operation without dust dispersion.

Filtration

• Primary filter: antistatic polyester bags, class M, large filtration area (30 000 cm²).
• Absolute filter: HEPA H14 with 99.995% filtration efficiency for particles down to 0.18 micron.
• Manual filter de-dusting to maintain suction performance.

Construction and handling
Robust steel frame with industrial wheels. Detachable 100 L AISI 304 stainless tank mounted on casters to facilitate emptying and handling of heavy or bulky waste.

Typical applications
Cleaning production lines in ATEX areas, maintenance of silos and powder storage zones, food and pharmaceutical industries, mechanical workshops, aerospace and other environments sensitive to hazardous dust.

Key features

• Designed for ATEX zones 21 and 22 (category 1/2D).
• Side-channel blower directly coupled to the motor (no belt).
• Quiet operation suitable for continuous use.
• Detachable 100 L AISI 304 stainless tank on casters.
• Filtration system combining antistatic class M bags and HEPA H14.
• Manual de-dusting system facilitating in-service maintenance.

Technical specifications

• Max vacuum (mmH2O): 2400
• Max airflow (m3/h): 420
• Capacity (L): 100
• Sound level (dB): 72
• Filtration area (cm²): 30000
• Voltage (Volts): 400
• Power (W): 4000
• Vacuum family: Industrial
• Primary filter: antistatic polyester bags, class M
• Absolute filter: HEPA H14 (99.995% at 0.18 micron)
• Blower: side-channel, directly coupled to motor (no belt)
• Integrated safety valve for motor cooling
• De-dusting system: manual
• Tank: AISI 304 stainless steel, detachable, 100 L, mounted on casters
• Dimensions (L x W x H): 63 x 119 x 147 cm
• Weight: 145 kg
• ATEX zones: zones 21 and 22 (can be used in zone 20 inside the tank)
