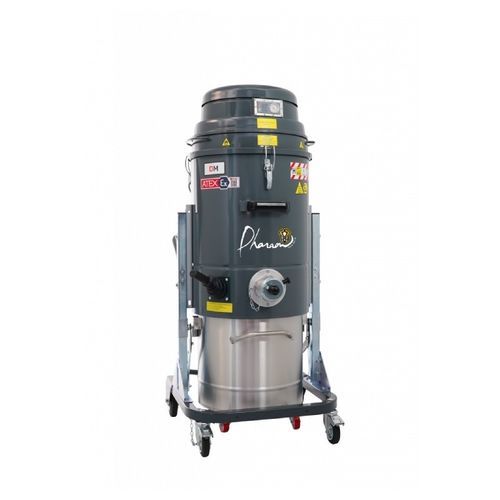

Industrial vacuum cleaner DM2 EL 1/3D

dryhazardous dustcombustible dust

Summary
The DM2 EL 1/3D is a single-phase ATEX-certified industrial vacuum cleaner designed for the safe extraction of hazardous (combustible) dust in ATEX areas (zone 20 indoor / zone 22 outdoor). Compact, robust and mobile, it delivers performance and safety for sensitive industrial environments.

Main features

• 2 single-phase by-pass motors
• ATEX certification: zone 20 indoor, zone 22 outdoor (Ex tb)
• Dual filtration: antistatic pocket primary filter (class M, 1 µ) + absolute HEPA H14 filter
• Manual de-dusting system operated by handle
• Removable AISI 304 stainless steel recovery tank, 60 L capacity
• Mobility equipment: profiled chassis and multidirectional industrial wheels

Detailed description
The DM2 EL 1/3D is engineered for reliable and safe operation in ATEX environments. It complies with ATEX regulations (standard UNI EN 17348:2022). The dust-tight suction unit (Ex tb) houses two by-pass motors capable of producing a maximum depression of 2 500 mmH₂O and a maximum airflow of 360 m³/h. Filtration consists of an antistatic pocket primary filter (class M, 1 µ) and an absolute HEPA H14 filter (retention up to 99.995% of fine particles, 0.018 µ). Filter cleaning is provided by a manual de-dusting system operated by a handle, and an integrated vacuum gauge allows real-time monitoring of filter clogging. The 60 L AISI 304 stainless steel tank is easily removable and fitted with a safety cap to contain dust. The profiled chassis and industrial wheels ensure excellent mobility for operations on industrial sites.

Characteristics / technical specifications

• Model: DM2 EL 1/3D
• Power: 2.2 kW
• Voltage (Volts): 230 V
• Maximum depression (mmH₂O): 2500
• Maximum airflow (m3/h): 360
• Tank capacity: 60 L
• Sound level: 76 dB
• Filter area: 30 000 cm²
• Primary filter: antistatic pocket filter (class M, 1 µ)
• Absolute filtration: HEPA H14 (standard, retention 99.995% at 0.018 µ)
• De-dusting system: manual (handle-operated)
• Certification: ATEX for dust (zone 20 indoor, zone 22 outdoor) — compliance UNI EN 17348:2022
• Tank material: AISI 304 stainless steel
• Dimensions: 66 x 70 x 148 cm (h)
• Vacuum family: Industrial
