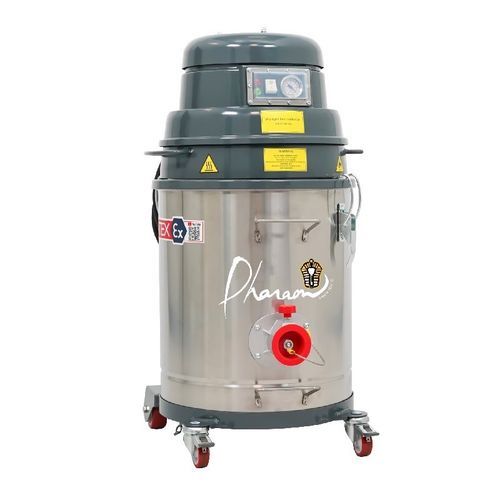

Industrial vacuum cleaner MTL 301 1/3D

dryhazardous dustcombustible dust

Summary
The MTL 301 1/3D is a compact industrial vacuum designed for the extraction of combustible dust in ATEX-classified areas. Supplied with a complete cleaning accessory kit, it is built for mobile cleaning and maintenance tasks in demanding industrial environments.

Overview
The MTL 301 1/3D from Pharaon is certified for dust use in ATEX Zone 20 (indoor) and Zone 22 (outdoor). Its compact, mobile design facilitates on-site cleaning while meeting safety and regulatory requirements for explosive dust atmospheres.

Main functional features

• Dual-stage filtration: antistatic primary filter (class M) plus absolute HEPA H14 filter, achieving up to 99.995% particle capture.
• Bypass motor suitable for non-continuous applications, designed for longevity and stable performance.
• AISI 304 stainless steel tank for durability and easy cleaning.
• Wheeled chassis for optimal mobility and on-site handling.
• Integrated vacuum/gauge for monitoring filter clogging and simplifying filter replacement.
• ATEX certifications for combustible dust: Zone 20 (indoor) and Zone 22 (outdoor).

Accessories supplied

• Cleaning accessory kit TA.0527.0000 (included).

Recommended use

• Extraction of combustible and hazardous dust in industrial settings.
• Cleaning and maintenance operations in ATEX-classified areas (Zone 20 indoor / Zone 22 outdoor).

Benefits

• Compact, mobile format for easy operational use and access in confined areas.
• High-efficiency filtration (two-stage + absolute HEPA) to ensure safety and compliance.
• Stainless steel construction and simple maintenance (AISI 304 tank, integrated gauge).

Technical specifications

• Maximum vacuum (mmH2O): 2500
• Maximum flow rate (m3/h): 180
• Capacity (L): 40
• Sound level (dB): 74
• Filter surface (cm2): 4000
• Voltage (V): 230
• Power (W): 2200
• Primary filter: ANT M (antistatic class M)
• Absolute filtration: HEPA H14 (standard)
• Application type: Combustible dust
• Vacuum family: Industrial
• Filtration efficiency: up to 99.995% of aspirated particles
• Tank: AISI 304 stainless steel
• Motor: bypass (suitable for non-continuous applications)
• Mobility: wheeled chassis
