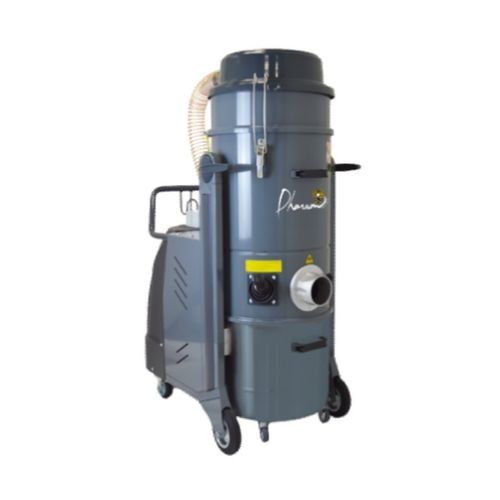

Industrial vacuum cleaner MTL4535 Z22

dryhazardous dustdust

Summary
Three-phase industrial vacuum MTL4535 Z22 for extraction of dust and debris, ATEX Zone 22 certified, equipped with a 45 L collection tank. Designed for continuous use in demanding industrial environments (food, plastics, packaging, industrial production).

Detailed description
The MTL4535 Z22 industrial vacuum is a robust, high-performance unit certified for ATEX Zone 22 and compliant with UNI EN 17348:2022. It is suited to continuous extraction of dust and debris and stands out for its compact footprint, mobility and low noise operation.

Functional features

• Three-phase 400 V motor with side-channel blower for continuous, maintenance-free operation (no mechanical transmission).
• Electrical power: 4 kW (current 8.4 A).
• Maximum suction (depression): 3200/2600 mmH2O.
• Airflow: 420 m³/h.
• Epoxy-painted steel structure for high resistance to impacts and wear.
• Primary filter: antistatic polyester bags class M (filter area 20 000 cm² – filtration 1 µm) with manual shake-off handle.
• HEPA H14 absolute filter: available as an option for applications requiring very fine filtration.
• Motor protection IP65 and integrated safety valve for protection against overheating and dust ingress.
• 45 L detachable collection tank, mobile on multidirectional castors with ergonomic handle.
• Compact and mobile (dimensions: 56 x 94 x 132 cm), low noise level (69 dB), approximate weight 90 kg.
• Option for bagging and removable tank for increased safety during waste collection.

Recommended applications
Suitable for food, plastics, packaging and industrial applications that require continuous extraction of dust and debris, including hazardous dusts depending on configuration and filters installed.

Supplied accessories

• Screw-on sleeve SL.0014.0000
• Flat aluminium nozzle TA.0023.0000

Technical characteristics / specifications

• Model: MTL4535 Z22
• Certification: ATEX Zone 22 compliant with UNI EN 17348:2022
• Voltage (V): 400 V
• Power (W): 4000 W
• Max depression (mmH2O): 3200
• Max flow (m³/h): 420
• Tank capacity: 45 L
• Noise level (dB): 69
• Filter area (cm²): 20 000
• Primary filter: antistatic polyester bags class M (filtration 1 µm)
• Cleaning system: manual
• Absolute filtration HEPA H14: optional
• Motor protection: IP65
• Dimensions (L x W x H): 56 x 94 x 132 cm
• Weight: approx. 90 kg
• Vacuum family: Industrial
