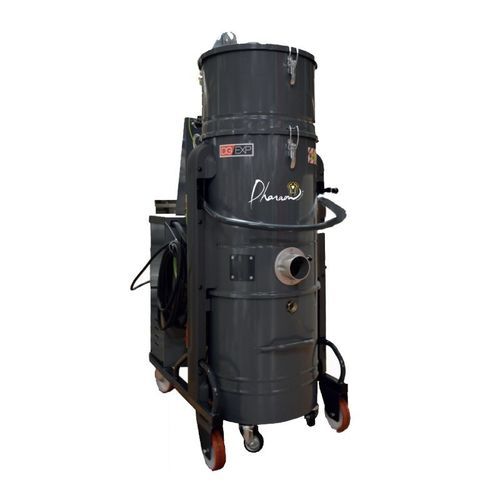

Industrial vacuum cleaner DG50 EXP PN

drydustfine dust

Summary
The Z22 DG50EXP PN is a three-phase industrial vacuum cleaner designed for the extraction of dust and light waste in demanding production environments. ATEX Zone 22 certified, it provides a safe solution for areas with a risk of dust-related explosion.

Use and applications
Suitable for intensive and continuous use. Typical application sectors: food processing, construction, metallurgy, mechanical workshops, paper and plastics industries.

Main features

• Industrial-grade vacuum cleaner adapted to production environments
• ATEX Zone 22 certification for work in combustible dust atmospheres
• Safety valve included
• High-efficiency filtration: antistatic filter standard, HEPA H14 filter optional
• Automatic filter cleaning system to maintain constant suction performance
• Integrated vacuum gauge for real-time clogging control
• Mobile, detachable tank compatible with disposable bags for clean waste removal
• Multidirectional castors and ergonomic handle for high manoeuvrability
• Integrated cable storage
• Robust construction: epoxy-painted steel, resistant to impacts and wear in industrial environments

Detailed description
The Z22 DG50EXP PN stands out for its versatility: collection of fine dust, dry residues and light industrial waste. The antistatic filtration reduces the risk of electrostatic accumulation and, combined with the optional HEPA H14, ensures a highly purified exhaust air. The automatic filter cleaning minimizes downtime and simplifies maintenance. The mobile tank and ergonomic accessories ease daily operations and waste disposal.

Operational advantages

• Designed for continuous suction and heavy-duty use
• Simplified maintenance thanks to automatic filter cleaning and the integrated vacuum gauge
• Enhanced safety in ATEX areas due to Zone 22 compliance and the safety valve
• Good on-site manoeuvrability (multidirectional wheels, ergonomic handle)

Characteristics / technical specifications

• Maximum vacuum (mmH2O): 3200
• Maximum airflow (m3/h): 420
• Capacity (L): 100
• Sound level (dB): 72
• Filtration area (cm²): 57 000
• Voltage (V): 400
• Power (W): 4000
• Vacuum family: Industrial
• Certification: ATEX Zone 22
• Filtration: antistatic filter (standard), HEPA H14 (optional)
• System: automatic filter cleaning
• Control: integrated vacuum gauge
• Construction: epoxy-painted steel
• Tank: mobile and detachable, compatible with disposable bags
• Mobility: multidirectional wheels, ergonomic handle, integrated cable storage
• Weight (product metadata): 137 kg
