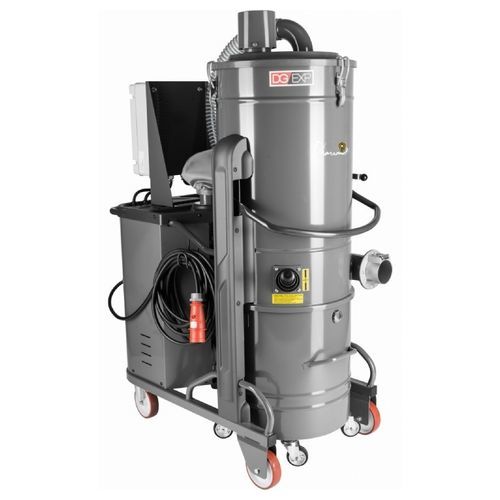

Industrial vacuum cleaner DG75 AF Z22

drydustcombustible dust

Overview
High-flow three-phase vacuum DG75 AF Z22, designed for silos and the food industry. Integrates into a centralized suction network.

Key points

• ATEX Zone 22 certification (UNI EN 17348:2022)
• Motor protection (IP55 and IP65 mentioned)
• High air flow
• Suitable for industrial environments

Detailed description
The DG75 AF Z22 industrial vacuum is engineered for environments demanding high safety and performance, including dust explosion risk areas (ATEX). It is intended for sectors such as construction, aluminium, PVC and plastics processing. With ATEX Zone 22 certification, it meets safety requirements for explosive dust atmospheres.

The DG75 AF Z22 is fitted with a three-phase motor (7.5 to 15 kW) designed for continuous operation. It features a side-channel blower sealed against dust and without mechanical transmission, providing power, reliability and controlled noise. The motor has protective rating(s) (IP65 noted; IP55 is also referenced). An integrated safety valve protects against overheating. A vacuum gauge allows visual monitoring of filter saturation.

Performance: maximum vacuum 3200/2600 mmH2O and air flow up to 700 m³/h, enabling handling of large amounts of dust and fine waste. Filtration comprises an antistatic polyester pocket filter class M, filtration area 40,000–50,000 cm² (technical value 49,000 cm²). Manual handle deblocking simplifies filter cleaning. Optional absolute HEPA H14 filter available (99.995% MPPS efficiency, retention down to 0.18 µm).

Construction and ergonomics: industrial epoxy-painted steel frame resistant to shocks and wear. Chassis on two large fixed wheels and two swivel castors (one with brake) for stable mobility. Removable 100 L recovery drum on casters for waste removal; direct bagging option for hygienic handling. Integrated rear cable storage. Compact dimensions and weight relative to capacity: 68 x 120 x 175 cm, weight 170 kg.

Applications

• Silos and food processing industries
• Construction, metallurgy, PVC, plastics processing
• ATEX Zone 22 (dust) areas

Technical specifications

• Model: DG75 AF Z22
• Certification: ATEX Zone 22 (UNI EN 17348:2022)
• Motor: three-phase, 7.5 to 15 kW
• Blower type: side-channel blower, dust-tight, without mechanical transmission
• Motor protection: IP65 (and IP55 noted elsewhere)
• Integrated safety valve
• Vacuum gauge for filter monitoring
• Maximum vacuum: 3200/2600 mmH2O
• Max air flow: up to 700 m³/h
• Filtration: antistatic polyester pocket filter class M, filtration area 40,000–50,000 cm² (technical value 49,000 cm²)
• Cleaning: manual deblocking by handle
• Optional: HEPA H14 absolute filter (99.995% MPPS, retention down to 0.18 µm)
• Recovery capacity: 100 L (removable drum on casters)
• Direct bagging option for hygienic disposal
• Wheels: 2 large fixed wheels + 2 swivel castors (one with brake)
• Noise level: 76 dB
• Voltage: 400 V
• Power example: 7,500 W (7.5 kW motor)
• Dimensions: 68 x 120 x 175 cm
• Weight: 170 kg
• Vacuum family: Industrial
