Industrial vacuum cleaner 802 WD AIREX 14V 1/3D
drywetliquids

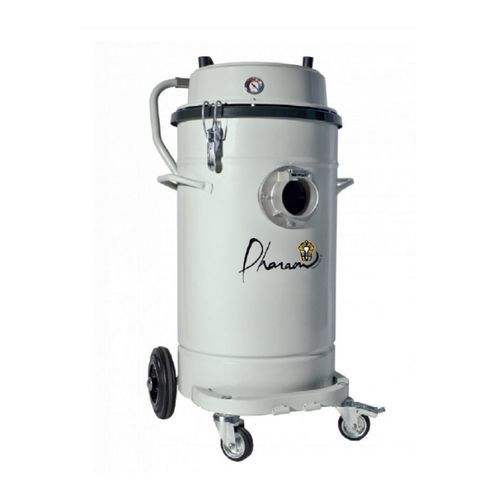

Industrial vacuum cleaner - 802 WD AIREX 14V 1/3D - Pharaon - dry / wet / liquids
Industrial vacuum cleaner - 802 WD AIREX 14V 1/3D - Pharaon - dry / wet / liquids
Add to favorites
Compare this product
Go to the Pharaon website for more information

Characteristics

Domain
industrial
Type
dry, wet
Substance vacuumed
liquids, dust
Power source
compressed air
Configuration
wheel-mounted
Number of motors
Venturi
Container type
steel
Other characteristics
with HEPA filter, anti-static, ATEX
Applications
for mechanical industry, for the pharmaceutical industry, for hazardous environments, for the food industry
Capacity

0.08 m³
(2.8252 ft³)

Air flow

300 m³/h
(10,594.4 ft³/h)

Vacuum

363 mbar
(5 psi)

Noise level

68 dB

Weight

30 kg
(66.14 lb)

Height

1,080 mm
(43 in)

Length

62 cm
(24.4 in)

Width

530 mm
(20.9 in)

Description

Overview
  • Compressed-air industrial vacuum ATEX for dust and liquids: model 802 WD AIREX 14V 1/3D, certified for ATEX Zones 20 and 22.
  • Fully pneumatic operation using a multi-nozzle Venturi system, eliminating electrical ignition sources for safe use in explosive atmospheres.
  • Typical applications: food processing, pharmaceutical, mechanical workshops, marine applications and other sensitive environments.


Performance and filtration
  • Maximum airflow: 300 m³/h.
  • Maximum vacuum (head): 3,700 mmH2O.
  • Filtration equipment: antistatic M-class primary filter, polypropylene liquid filter, HEPA H14 absolute filter (filter area indicated on product page: 20,600 cm²) capable of retaining 99.995% of particles down to 0.18 µm.


Construction and ergonomics
  • Rugged epoxy-painted steel chassis for field use.
  • High rear wheels and multidirectional front castors for optimal maneuverability, even on uneven surfaces.
  • Rear quick-drain hose for liquid disposal without direct contact.
  • Compact, ergonomic design for operator handling.


Special features
  • Float included to protect the unit during liquid suction.
  • Maintenance-free multi-nozzle Venturi system.
  • Antistatic polyester M-class filter, polypropylene liquid filter and float for liquids.


Technical specifications
  • Model: 802 WD AIREX 14V 1/3D
  • Dimensions: 62 x 53 x 108 cm (H)
  • Weight: 30 kg
  • Maximum vacuum (mmH2O): 3700
  • Maximum airflow (m3/h): 300
  • Capacity: 80 L
  • Noise level (dB): 68
  • Filter surface (cm²): 5000 (technical value listed on the data sheet)
  • Absolute filtration: HEPA H14 (surface indicated elsewhere on the page: 20,600 cm²; efficiency: 99.995% at 0.18 µm)
  • Vacuum family: Industrial
  • Air inlet (mm): 80
Go to the Pharaon website for more information
