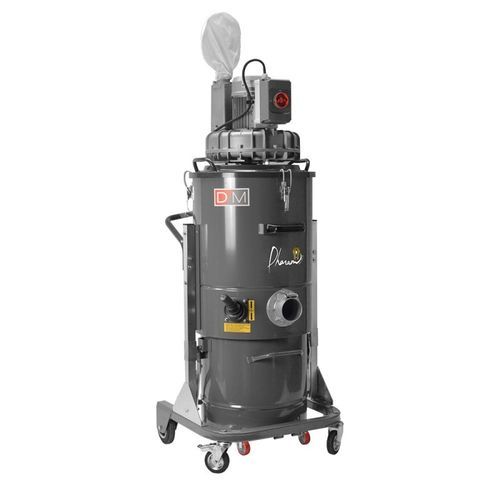

Industrial drum vac Z22 ZFRELT

dryhazardous dustdust

Summary
The Z22 ZFRELT industrial vacuum is an ATEX-certified (Zone 22) solution designed for the extraction of dust and debris in industrial environments (food, chemical, metallurgy, plastics). It is suitable for occasional combustible dust clouds and engineered for continuous, heavy-duty operation.

Certification and safety
Certified ATEX Zone 22, marking: 3D Ex tc IIIB T135°C Dc. Designed for use in atmospheres that may occasionally contain combustible dust clouds, in compliance with applicable safety requirements.

Motorization and performance
Equipped with a side-channel blower running on three-phase 400 V. Documented power varies by configuration (product text cites up to 6.5 kW; technical sheet indicates 3 000 W). Performance values found on the page: maximum vacuum cited as 3 300 mmH₂O (paragraph) and 3 000 mmH₂O (technical sheet), maximum airflow cited as 530 m³/h (paragraph) and 318 m³/h (technical sheet). System without mechanical transmission, suitable for continuous use and low maintenance.

Filtration
Supplied as standard with a pocket filter category L (3 microns) with filter area indicated between 30 000 and 50 000 cm² depending on configuration. Manual de-clogging via an ergonomic handle. Optional: absolute HEPA H14 filter (99.995 %) for demanding environments.

Design and ergonomics
Full epoxy-painted steel construction for high resistance to impact and wear. 60 L tank mounted on casters with a quick-release handle for easy emptying. Designed to vacuum heavy, dense or compact materials while maintaining consistent performance.

Customization and options
Available options: remote start via dry contact, fixed sensor for floor suction, specific accessories depending on waste type, and HEPA H14 filtration as an option.

Accessories supplied

• Screw-on sleeve SL.0014.0000 (reference shown: SL.0014.0000)
• Flat aluminum nozzle TA.0023.0000 (reference shown: TA.0023.0000)

Characteristics / technical specifications

• Model: Z22 ZFRELT
• ATEX certification: Zone 22 (marking 3D Ex tc IIIB T135°C Dc)
• Blower: side-channel, three-phase 400 V
• Power: up to 6.5 kW (product mention); 3 000 W (technical sheet value)
• Maximum vacuum: 3 300 mmH₂O (paragraph); 3 000 mmH₂O (technical sheet)
• Maximum airflow: 530 m³/h (paragraph); 318 m³/h (technical sheet)
• Tank capacity: 60 L
• Noise level: 76 dB
• Filter area: 30 000 to 50 000 cm² (product mention); 30 000 cm² (sheet value)
• Primary filter: category L (3 microns)
• Absolute filtration HEPA H14: option (99.995 %)
• Vacuum family: Industrial
• Construction: epoxy-painted steel
• De-clogging system: manual (ergonomic handle)
• Use: continuous, suitable for heavy/dense/compact materials
• Possible options: remote start via dry contact, fixed sensor for floor suction, specific accessories
