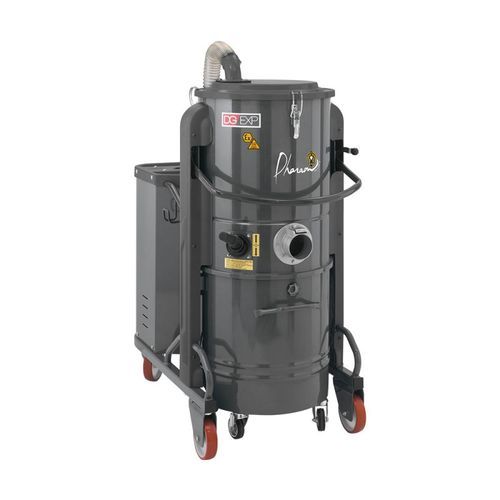

Bag dust collector DG70 EXP

manual cleaningfor the food industryexplosion-proof

Overview
The DG70 EXP Z22 industrial dust extractor is designed for demanding industrial applications in potentially explosive atmospheres. Certified ATEX Zone 22, it provides safe continuous extraction of combustible dusts and industrial waste. Three-phase unit with large filter area for sustained operation.

Key functions and components

• ATEX Zone 22 certification for use in potentially explosive atmospheres.
• High-performance three-phase motor (5.5–11.1 kW) suitable for continuous duty.
• Side-channel blower with direct drive (quiet, reliable operation and low maintenance).
• Motor protection rating IP65 against dust and water ingress.
• Built-in safety valve to prevent overheating.
• Integrated vacuum gauge for real-time filter condition monitoring and performance optimization.
• Maximum vacuum: 3600 / 3000 mmH₂O.
• Airflow: 530 m³/h.
• Main filtration: antistatic polyester pocket filter class M with exceptional filter area (36,000 cm² reported).
• Manual filter cleaning by handle (de-dusting).
• Optional absolute HEPA H14 filter available (32,000 cm², 99.995% efficiency MPPS, particles ≥ 0.18 µm).
• Detachable 100 L tank mounted on wheels for safe and easy emptying; direct bagging possible.
• Industrial steel chassis with epoxy paint for resistance to shocks and wear.
• Mobility: two large fixed wheels and two swivel wheels; tank on casters.
• Built-in cable storage at rear.
• Dimensions: 66 x 118 x 145 cm.
• Weight: 150 kg.

Benefits

• Suitable for heavy waste extraction.
• Designed for continuous operation with three-phase drive.
• Detachable wheeled tank for fast, safe emptying and optional bagging.
• Versatile use across sectors (aluminum, PVC, construction, heavy industry, mechanical, food processing, etc.).

Technical specifications

• Model: DG70 EXP Z22 (product designation on page)
• Certification: ATEX Zone 22
• Motor: three-phase high-performance, range 5.5–11.1 kW
• Power (W): 5500 (technical value indicated)
• Blower: side-channel, direct drive
• Motor protection rating: IP65
• Safety valve: integrated
• Vacuum gauge: integrated (filter monitoring)
• Maximum vacuum (mmH₂O): 3600 (value indicated)
• Maximum airflow (m³/h): 530
• Tank capacity: 100 L
• Sound level (dB): 72
• Filter area (cm²): reported values on page: 36,000 cm² (polyester antistatic pocket filter class M); alternate table value: 30,000 cm²
• Optional absolute filter: HEPA H14, area 32,000 cm², efficiency 99.995% (MPPS), particles ≥ 0.18 µm
• Cleaning system: manual handle de-dusting
• Voltage (V): 400 V
• Family: Industrial vacuum
• Construction: epoxy painted steel
• Chassis / mobility: 2 large fixed wheels + 2 swivel wheels; detachable tank on casters
• Direct bagging: provision available
• Dimensions (L x W x H): 66 x 118 x 145 cm
• Weight: 150 kg
