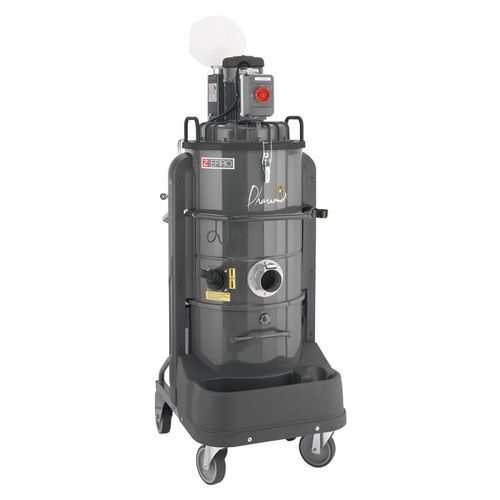

Industrial vacuum cleaner Z22 ZFR 75

drychipdust

Summary
The Z22 ZFR75 three-phase industrial vacuum is ideal for aluminum and PVC dust and is designed for use in ATEX Zone 22. Certified ATEX 3D Ex tc IIIB T135°C Dc to ensure safe operation in potentially explosive atmospheres.

Main applications

• Chemical industry
• Food industry
• Metalworking
• Plastic and woodworking workshops

Description and key features

• Self-ventilated three-phase motor (mentioned 3 kW in the product description) designed for heavy-duty continuous operation.
• Versatile design: handles fine dust and solid waste (e.g., aluminum shavings, wood, PVC).
• Detachable 100 L collection tank mounted on robust castors for long autonomy and easy emptying.
• Mobility and stability: two swivel front wheels and two large fixed rear wheels for maneuverability in production environments.
• Epoxy-painted steel construction providing impact and corrosion resistance.
• Integrated accessory holder for storing tools and nozzles.
• Safety: safety valve protecting the motor in case of filter saturation; motor protection rating IP65 (dust-tight and protected against water jets).
• Filtration system supplied as standard with ANT M antistatic filter (1 µm) effective against fine, harmful or conductive dusts (wood, aluminum, certain industrial powders).
• Integrated de-clogging system for quick, simple filter cleaning — de-clogging indicated as manual in technical data.

Technical specifications

• Model: Z22 ZFR 75 (referred to as ZFR 75)
• ATEX certification: ATEX 3D Ex tc IIIB T135°C Dc
• Motor: self-ventilated three-phase motor (3 kW mentioned)
• Power (W): 4000
• Voltage (V): 400
• Max vacuum (mmH2O): 3600
• Max flow (m3/h): 318
• Tank capacity: 100 L
• Noise level (dB): 76
• Filtration area (cm²): 30000
• Primary filter: ANT M (antistatic, 1 µm)
• De-clogging system: Manual
• Absolute filtration HEPA H14: Optional
• Motor protection: IP65
• Weight: 95 kg
• Vacuum family: Industrial
