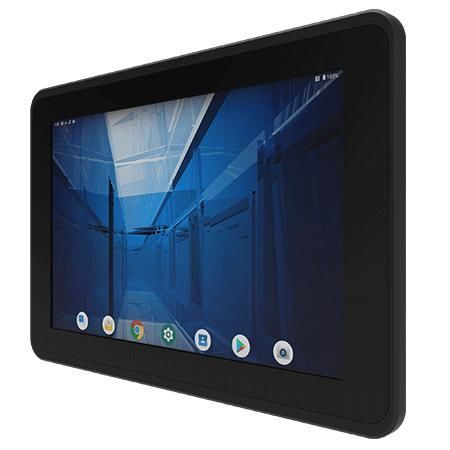

Multitouch screen panel PC W10IQ3S-EHH2

PCAP capacitive touch screen10.1"1280 x 800

Overview
Winmate W10IQ3S-EHH2 is a 10.1-inch Qualcomm Snapdragon™ 660 E-Series HMI Panel PC engineered for machine control, factory automation and operator interfaces. It delivers a fanless, low-power platform with long lifecycle availability for industrial and embedded applications, OEMs and system integrators. Built-in capabilities include projected capacitive multi-touch, front IP65 protection, intelligent storage management and an integrated micro-UPS for short blackout bridging.

Key Features

• 10.1-inch 1280 x 800 resolution with Projected Capacitive Multi-Touch (PCAP)
• Qualcomm Snapdragon™ 660 octa-core 2.2 GHz CPU
• Fanless cooling and ultra-low power consumption
• Front protection IP65 (water and dust proof)

Product Highlights

• True Flat (Easy-to-clean): True-flat glass front for simple cleaning and no dust traps.
• Qualcomm Processor: Efficient octa-core processor suited to industrial IoT workloads.
• P-Cap Touch (Scratch resistant): Glass cover lens with multi-touch support for reliable operator input.
• Quick Panel Mounting: Mounting clips enable installation without drilling.
• Integrated Micro-UPS: Short-term power bridging for controlled shutdown or brief outages.
• Intelligent Storage Management: ROM protection and managed onboard eMMC for data integrity.

Certifications

• CE
• FCC

Technical Specifications

• Model: W10IQ3S-EHH2
• Manufacturer: Winmate
• Display — Size / Resolution: 10.1-inch, 1280 x 800
• Display — Touch / Glass: Projected Capacitive Multi Touch (PCAP)
• Display — Brightness: 350 nits (1000 nits optional)
• Display — Contrast Ratio: 800:1
• Display — Active Area: 216.96 x 135.6 mm
• System — Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• System — Memory: 3 GB LPDDR4
• System — Storage: 32 GB eMMC onboard
• System — OS: Android 9.0
• System — WLAN / BT: Optional
• Mechanical — Dimensions: 267 x 182 x 56.5 mm; Cut out: 244 x 159 mm; Weight: 1.5 kg
• Mechanical — Mounting: Panel mount (mounting clips included)
• Mechanical — Enclosure: Metal front bezel with plastic back cover
• Environment — Operating Temp / Humidity: 0°C to 50°C; 10% to 90% RH non-condensing
• Environment — Storage Temp: -20°C to 60°C
• Environment — Shock / Vibration: MIL-STD-810G Method 516.6 / 514.6
• Environment — IP Rating: Front IP65
• IO Ports — USB: 2 x USB 2.0 Type-A, 1 x USB 3.0 Type-C
• IO Ports — Serial: 1 x RS232/422/485 (default RS232)
• IO Ports — LAN: 1 x LAN (PoE at/af optional)
• IO Ports — Video: 1 x Micro HDMI (optional)
• IO Ports — Audio: 2 x Speaker (optional)
• IO Ports — SD: 1 x Micro SD slot
• Power — Input: 12V DC terminal block (default); 9~36V optional; Adapter: 12V 50W
• Accessories: 100~240V AC-DC adapter, power cord, VESA screws, mounting clips, manual
