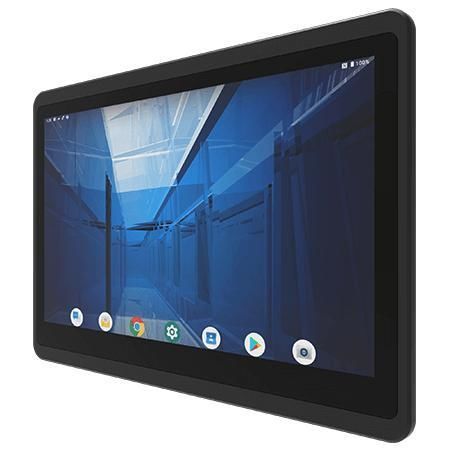

Multi-touch screen panel PC W15IQ3S-EHA4

touch screenPCAP capacitive touch screen15.6"

Overview
Winmate W15IQ3S-EHA4 is a 15.6-inch industrial HMI Panel PC powered by Qualcomm Snapdragon™ 660, designed for industrial automation, embedded systems and mission-critical applications. It features a projected capacitive multi-touch display, fanless cooling for ultra-low power consumption, and front IP65 protection suitable for harsh environments.

Key Features

• 15.6-inch 1920 x 1080 resolution with Projected Capacitive Multi-Touch (P-CAP)
• Qualcomm® Snapdragon™ 660 (Octa-Core up to 2.2 GHz)
• Fanless cooling design and ultra-low power consumption
• Front IP65 water and dust protection
• I/O: USB 3.0 OTG (Type-C), USB 2.0 ports, RS232/422/485, RJ45 LAN, Micro SD slot, Micro HDMI (optional)

Product Details

• True Flat design for easy cleaning and reduced dust accumulation on edges
• Qualcomm processor providing balanced performance and power efficiency for IIoT and embedded HMI tasks
• P-Cap glass cover lens resistant to scratches; supports multi-touch control with fingers (4-point)
• Panel-mount with mounting clips for quick installation and maintenance without drilling

Certifications

• CE
• FCC

Technical Specifications

• Display - Size: 15.6 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Display - Resolution: 1920 x 1080
• Display - Brightness: 300 nits
• Display - Contrast Ratio: 800:1
• Display - Viewing Angles: 85 / 85 / 85 / 85 (typical)
• Display - Active Area: 344.16 x 193.59 mm
• System - Processor: Qualcomm® Snapdragon™ 660 (Octa-Core up to 2.2 GHz)
• System - Memory: 3 GB LPDDR4
• System - Storage: eMMC onboard 32 GB
• System - Operating System: Android 9.0
• System - WLAN / Bluetooth: Optional support
• Mechanical - Dimension: 388 x 260 x 58 mm
• Mechanical - Cut out: 371 x 224 mm
• Mechanical - Weight: 2.8 kg
• Mechanical - Mounting: Panel mount (mounting clips)
• Mechanical - Enclosure: Metal housing
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810G Method 516.6 Procedure I
• Environment - Vibration: MIL-STD-810G Method 514.6 Procedure I
• Environment - IP rating: Front IP65
• IO Ports - USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type C)
• IO Ports - Serial: 1 x RS232/422/485 (default RS232)
• IO Ports - LAN: 1 x LAN (default), PoE at/af optional
• IO Ports - Video: 1 x Micro HDMI (optional)
• IO Ports - Audio: 2 x speaker (optional)
• IO Ports - SD Card Slot: 1 x Micro SD card slot
• Power - Rating: 12 V DC with terminal block (default); 9–36 V optional
• Power - Adapter: 12 V 50 W adapter
• Accessory - Included: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips
