Multitouch screen panel PC R15IQ3S-EHC3
PCAP capacitive touch screen15"1024 x 768

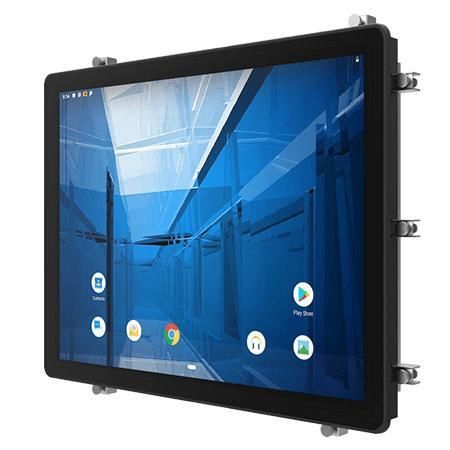

Multitouch screen panel PC - R15IQ3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Multitouch screen panel PC - R15IQ3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Multitouch screen panel PC - R15IQ3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768 - image - 2
Multitouch screen panel PC - R15IQ3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768 - image - 3
Multitouch screen panel PC - R15IQ3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768 - image - 4
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
15"
Resolution
1024 x 768
Processor
Qualcomm Snapdragon 660
Operating system
Android
Construction
fanless
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
HMI, Ethernet, WiFi, Bluetooth, RJ45, USB 2.0, PoE, USB Type-C
Memory size

3 GB

Description

Overview
Winmate R15IQ3S-EHC3 is a 15-inch E Series HMI Panel PC powered by a Qualcomm® Snapdragon™ 660 octa-core (2.2 GHz). Designed for machine control, factory automation and operator HMI, it features a fanless design, low power consumption and front IP65 water/dust protection. Suitable for industrial buyers, OEMs and system integrators requiring long-lifecycle, easily deployable panel HMI solutions.

Key Features
  • 15" display, 1024 x 768 resolution with Projected Capacitive Multi-Touch (P-CAP)
  • Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz processor
  • Fanless cooling for quiet, low-power operation
  • Front IP65 water and dust protection


Product Highlights
  • True Flat front for easy cleaning and hygienic maintenance
  • P-Cap multi-touch with scratch-resistant glass supporting multi-finger gestures
  • Quick panel installation with mounting clips (no drilling required)
  • Metal front bezel with plastic back cover for a compact, serviceable enclosure


Certifications
CE, FCC

IO & Connectivity (summary)
  • USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
  • Serial: 1 x RS232/422/485 (Default RS232)
  • LAN: 1 x LAN (Default); PoE at/af optional
  • Video: 1 x Micro HDMI (optional)
  • SD Card: 1 x Micro SD card slot


Accessories (included / available)
  • 100~240V AC to DC adapter
  • Power cord
  • VESA screws
  • Panel mounting clips


Use cases
Machine control, operator HMI, factory automation and other industrial embedded HMI applications requiring reliable, low-power panel computers with front IP65 protection.

Technical specifications
  • Display Size: 15.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
  • Resolution: 1024 x 768
  • Panel Brightness: 300 nits
  • Contrast Ratio: 2000:1
  • View Angles: 88,88,88,88
  • Active Area: 304.1 x 228.1 mm
  • Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
  • Memory: 3 GB LPDDR4
  • Storage: Onboard 32 GB eMMC
  • Operating System: Android 9.0
  • WLAN: Support (optional)
  • Bluetooth: Support (optional)
  • Dimension: 367 x 291 x 65.8 mm
  • Cut out (panel): 342 x 261 mm
  • Weight: 3.0 kg
  • Mounting: Panel mount; VESA mount
  • Enclosure: Metal front bezel with plastic back cover
  • Cooling System: Fanless design
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Shock: MIL-STD-810G Method 516.6 Procedure I
  • Vibration: MIL-STD-810G Method 514.6 Procedure I
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • USB Ports: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
  • Serial Port: 1 x RS232/422/485 (Default RS232)
  • LAN: 1 x LAN (Default); PoE at/af optional
  • Video: 1 x Micro HDMI (optional)
  • Audio: 2 x Speaker (optional)
  • SD Card Slot: 1 x Micro SD card slot
  • Power Rating: 12V DC with Terminal Block (9~36V optional)
  • Adapter: 12V 50W
