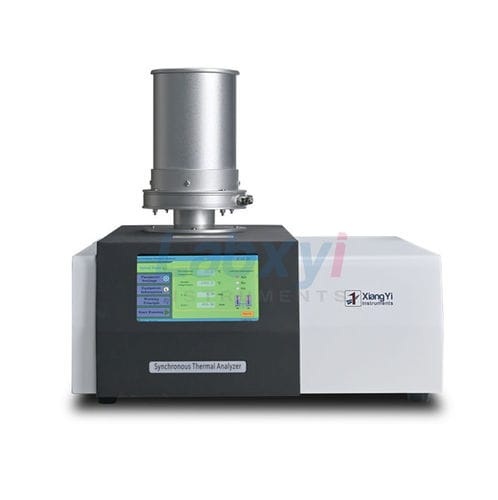

DSC analyzer STA3000

processcrystallizationstability

Overview
STA synchronous thermal analysis combines TGA with DSC/DTA to acquire TG and DSC/DTA data simultaneously from the same sample in a single run.

Application
Suitable for research and development, process optimization and quality control in plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic and metal materials, and composites.

Measured parameters

• DSC: melting and crystallization, phase transitions, reaction temperatures and enthalpies, combustion heat and specific heat capacity.
• TG: thermal stability, decomposition, REDOX behavior, adsorption, free water and gypsum content, compositional analysis by mass change.

Structural advantages

• Furnace heated by double-row winding of alloy wire: nickel-chromium (STA2000) or platinum-rhodium (STA3000) to reduce interference and improve high-temperature performance.
• Tray sensor in nickel-chromium (STA2000) or platinum-rhodium (STA3000) alloy for high-temperature, oxidation and corrosion resistance.
• Separated power supply and circulating cooling components to reduce thermal and vibration influence on the microbalance.
• Open-top furnace design for convenient operation, minimizing furnace movement and protecting sample rods.
• Insulation isolating furnace heat from chassis and microbalance.
• Interchangeable furnace body available per customer requirements.

Key features

• 32-bit ARM Cortex-M3 processor for faster sampling and processing.
• 24-bit four-channel AD acquisition for DSC, TG and temperature signals.
• Independent control of power and water-cooling parts by 8-bit MCU for coordinated isolation.
• USB two-way communication for remote operation and parameter control via PC software.
• 7-inch 24-bit full-color touch screen with on-screen TG calibration.

Instrument interface

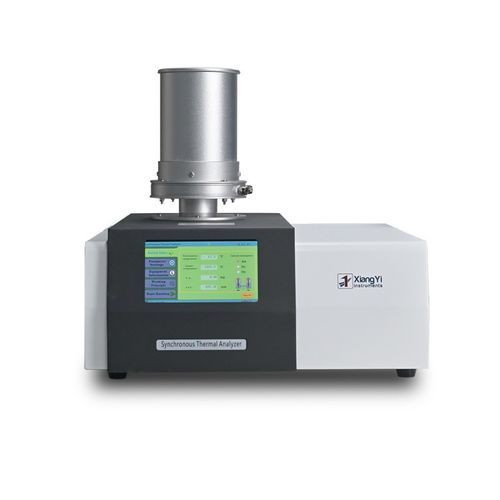

Instrument provides operator interface and control functions (see product images).

Technical parameters
Model: STA3000
Temperature range: RT ~1500°C
Temperature resolution: 0.01°C
Temperature fluctuation: ±0.1°C
Furnace & sensor material: platinum-rhodium
Heating rate: 0.1 ~ 80°C/min
Temperature control: PID (heating, holding, cooling)
Hold time: 0 ~ 300 min (adjustable)
Balance range: 0.01 mg ~ 3 g
Program control: multi-stage heating control
DSC range: 0 ~ ±600 mW
DSC resolution: 0.01 mW
Weighing accuracy: 0.01 mg
Display mode: 7-inch 24-bit color touchscreen
Atmosphere device: built-in gas flow meter with two-way switching and flow control
Atmosphere modes: inert, oxidizing, reducing, static, dynamic
Software: intelligent software for automatic TG recording, data processing and report generation
Scan modes: heating scan, cooling scan
Power supply: isolated power and weighing system to avoid AC interference; AC220V 50Hz
Communication interface: USB

Packing list

• Host: 1 set
• USB drive with software: 1 pc
• Data cable: 2 pcs
• Power cable: 1 pc
• Ceramic crucible: 200 pcs
• Ceramic lid: 2 pcs
• Metal lid: 1 pc
• Raw tape: 1 L
• Pure tin: 1 bag
• 10A fuse: 5 pcs
• Sample spoon / sample press rod / tweezers: 1 each
• Ear ball: 1 pc
• Tubing: 2 pcs
• Counterweight: 1 pc
• Sensor: 1 pc
• Manual: 1 pc
• Warranty card: 1 pc
• Certificate: 1 pc

Optional accessories

• SN: STAC0011 — Ceramic crucibles
• SN: STAC0012 — Aluminum crucible
• SN: STAC0013 — Liquid cooling module with thermostat
