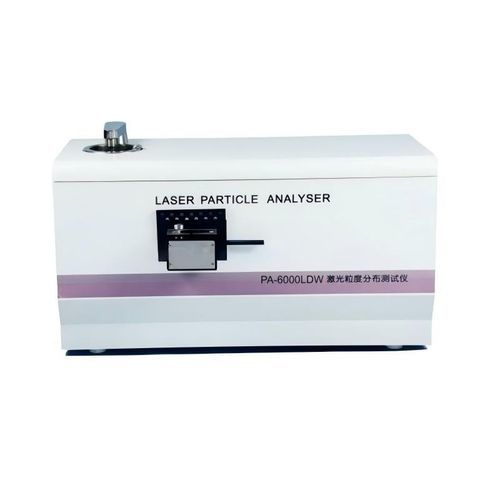

Laser diffraction particle size analyzer PA-6000LDW

static light scatteringlaserfor the pharmaceutical industry

Overview
PA-6000LDW is a particle size analyzer combining dry and wet measurement modes with a measuring range of 0.02–2000 µm. The instrument supports powders, liquid suspensions, emulsions and magnetic materials and provides automated test sequences for reproducible results.

Working systems

• Dry system: analyzer host, auxiliary unit (vacuum, waste powder collection tank, air purification tank) and oil-free silent air compressor.
• Liquid (wet) system: integrated ultrasonic dispersion, mechanical agitation and circulation.
• Seamless switching: software-controlled changeover between dry and wet modes without manual hardware replacement to preserve test accuracy.

Applications

• Particle size distribution for dry powders and emulsions, including ferrites.
• Magnetic powders: NdFeB, hard and soft magnetic powders.
• Cement, cobalt powder, electronic materials, pesticides, pigments.
• Pharmaceuticals, ceramics, cosmetics.
• Paints, coatings and food ingredients.
• Calcium carbonate, talc, kaolin, alumina, rare earths.
• Catalysts, blowing agents, refractory materials, graphite.

Features

• Combined dry and wet measurement capability to handle materials not dispersible in water and to test a wide range of powders and emulsions.
• Computer-controlled mode switching and automated workflows for hands-off operation.
• Compact design with three main units: host, auxiliary unit and oil-free silent compressor; auxiliary unit includes filtration and dust collection for dry testing.
• Integrated wet cell with ultrasonic dispersion and circulation for effective sealing and low interference; automatic zeroing before measurement.
• Patented dry dispersion system generating particle rotation and collisions to achieve monodisperse states during measurement.
• Automated sampling and test sequence for consecutive measurements and result storage.
• Oil-free silent compressor: low noise, compact footprint, low power consumption and simplified maintenance.

Specifications (table)
Principle: Full-course Mie scattering theory complying with ISO 13320
Measuring range: 0.02–2000 µm
D50 accuracy: <±3% (with national certified reference material)
Light source: Laser diode 632.8 nm, 3 mW, >20,000 h
Light path: Parallel light path design complying with ISO 13320 and ISO 13321
Detector: Multi-element silicon detector; 128 photodiodes arranged to maximize detection angle up to 165°
Test method: Automated wet and dry measurement under computer control; dry test completes sampling, air control and measurement within ~2 minutes; wet test automates filling, dispersion, measurement and cleaning within ~2 minutes.
Dispersion: Dry — patented vacuum + compressor system for short dispersion time; Wet — integrated ultrasonic, agitator and circulation.
Dispersant: Dry — air; Wet — tap water, distilled water or specified dispersing agents.
Sample weight: Wet suspension volume variable; typical powder dose ~1 g up to larger quantities depending on material.
Software: Windows-based analysis software; outputs distribution tables and curves, D10/D50/D90/D97, mean size and specific surface area.
Power: AC 220V 50Hz / 110V 60Hz
Operating environment: Clean, 0–40 °C
Dimensions (Analyzer): 860 × 420 × 500 mm; Dry-test auxiliary unit: 660 × 320 × 900 mm

Standard analyzer configuration (summary)

• PA-6000LDW analyzer host (PC) ×1 — includes ultrasonic, agitator and circulation functions.
• PA-6000LDW auxiliary unit (PC) ×1 — includes dust collection, dust tank and air purification tank.
• Oil-free silent air compressor ×1.
• Particle size analysis software (SET) ×1.
• Operating manual ×1.
• Factory inspection report, test certificate and certificate ×1 each.
• Accessories: power cable ×2; serial/control cable ×1; sample tank ×2; compressor intake/dust pipes ×1 each; screwdriver, brush ×1 each; silicone tube ×3 (spare); pulley rubber ring ×10 (spare); inlet valve ×1; intake pipes and drains ×1 each; sealing pads ×1 (spare); dispersant bottle ×1; standard sample ×1; dustproof glass ×1; fuse ×1; mixing belt ×1 (spare); sampling spoon ×1; polishing cloth ×1.

Technical specifications

• Model: PA-6000LDW
• Measurement principle: Full-course Mie scattering theory (ISO 13320)
• Particle size range: 0.02–2000 µm
• D50 accuracy: <±3% (with national certified reference material)
• Light source: 632.8 nm laser diode, 3 mW, >20,000 h
• Detector: Multi-element silicon detector, 128 photodiodes, detection angle up to 165°
• Test modes: Automated wet and dry measurement (computer-controlled)
• Dispersion methods: Dry (patented vacuum + compressor) and Wet (ultrasonic + agitator + circulation)
• Software: Windows-based; outputs distribution curves, D10/D50/D90/D97, mean size, specific surface area
• Power: AC 220V 50Hz / 110V 60Hz
• Operating environment: Clean, 0–40 °C
• Analyzer dimensions: 860 × 420 × 500 mm
