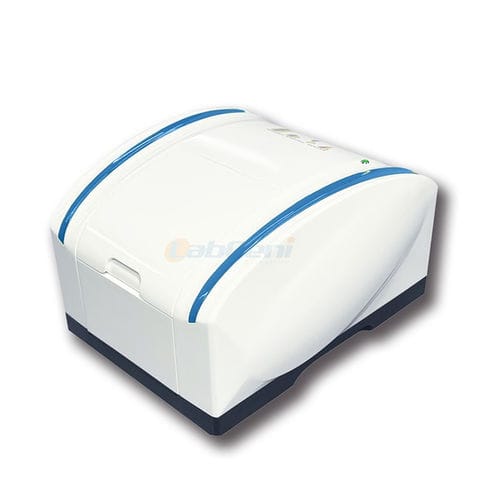

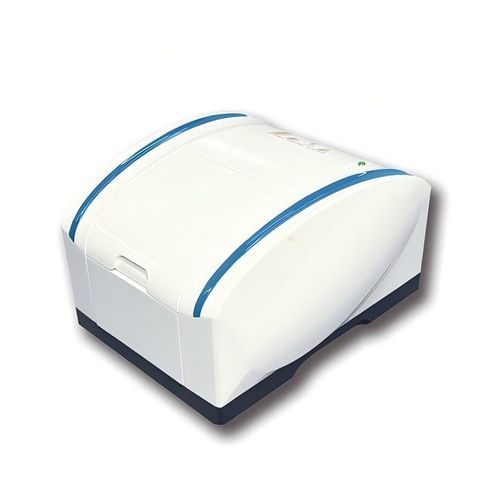

Mid-infrared spectrometer FT-IR5000

FT-IRfor laboratoryR&D

Product overview
The FT-IR5000 Fourier-transform infrared spectrometer is a compact, cost-effective entry-level FTIR for industrial and laboratory use. It provides selectable spectral ranges (7,800–350 cm⁻¹ standard with KBr or 5,000–500 cm⁻¹ moisture-proof ZnSe option), high signal-to-noise performance and ≤0.9 cm⁻¹ resolution, making it suitable for routine material identification, quality control and research support.

Durable design

• Engineered for reliable operation in industrial environments and variable ambient conditions.
• Long-life solid-state diode lasers and ceramic mid-IR light source (operating temperature ~1550K) extend service intervals.
• Permanently collimated, solid-angle mirror interferometer with full mirror coating and gold finish for stable optical performance and >5 years mirror life.
• Moisture-resistant options (ZnSe beam splitter) and sealed design improve tolerance to humidity.
• Built-in monitoring displays temperature, humidity and component status in real time.

Easy to maintain

• User-replaceable consumables and modules: IR source, desiccant, power supply, sample compartment window.
• Modular design allows replacement without opening the optical stage; no specialised repair staff required for routine service.

Application industries

• Chemicals and petrochemicals
• Polymers and plastics quality control
• Pharmaceutical production and formulation analysis
• Food & beverage inspection and R&D
• Environmental monitoring and research laboratories

Applicable attachments

• ATR accessories (single-reflection, diamond, ZnSe)
• Gas cells for vapour analysis
• Microscope integration for micro-sample analysis
• Humidity-proof windows and sample compartment kits

SPECIFICATIONS
Humidity: Sealed design to resist ambient moisture
Interface: Network (Ethernet) connection for host-PC integration
Beam splitter: Germanium-plated KBr beam splitter optimized for mid-IR (ZnSe moisture-proof option available)
Laser: Long-life solid-state diode laser
Verification: Meets Chinese Pharmacopoeia requirements
Power supply: 100–240 V, 50–60 Hz
Dimensions (L×W×H): 357 mm × 395 mm × 243 mm
Light source: High-energy mid-infrared ceramic light source; user-replaceable
Spectral range: 7,800–350 cm⁻¹ (standard KBr) or 5,000–500 cm⁻¹ (ZnSe moisture-proof option)
Detector type: Fast-response, moisture-proof DLaTGS with 32-bit ADC

Technical Specifications

• Model: FT-IR5000
• Spectral range: 7,800–350 cm⁻¹ (standard KBr) or 5,000–500 cm⁻¹ (moisture-proof ZnSe option)
• Spectral resolution: ≤0.9 cm⁻¹
• Signal-to-noise ratio: 50,000:1 (peak-to-peak, 1-minute)
• Wavenumber accuracy: ≤0.005 cm⁻¹
• Interferometer: Permanently collimated solid-angle mirror interferometer, gold mirror finish (>5 years lifespan)
• Beam splitter: Germanium-plated KBr (ZnSe moisture-proof optional)
• Detector: Moisture-proof DLaTGS with built-in 32-bit ADC
• Infrared light source: Mid-IR ceramic source, ~1550 K, >5 years service life
• Laser: Solid-state diode laser, >10 years expected lifetime
• Power supply: 100–240 V, 50–60 Hz
• Dimensions (L×W×H): 357 × 395 × 243 mm
• Networking: Ethernet connection between instrument and PC; plug-and-play
