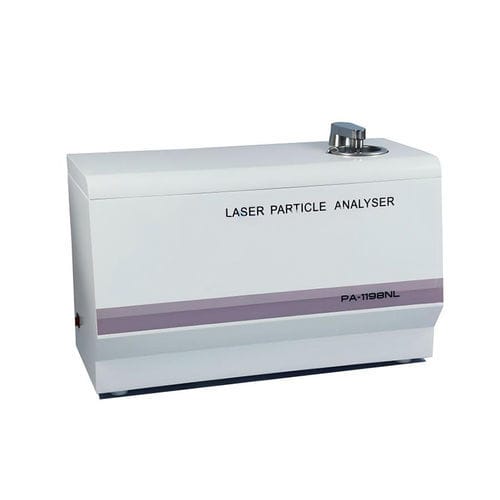

Laser nanoparticle size analyzer PA-1198NL

opticallaser light scatteringdynamic light scattering

Description:
PA-1198NL nano-laser particle size analyzer complies with ISO 13320 and ISO 13321 standards and combines dynamic light scattering (DLS) and photon correlation spectroscopy. The system is calibrated with national reference materials. Particle size distribution is calculated by specialized analysis software that exploits differences in Brownian motion and laser scattering of particles. Tests are fully automated under computer control with automatic selection of optimal parameters (e.g. channel count, delay time). Operation is stable and user-friendly; test time is fast (typically 2–5 minutes per sample) and samples can be tested singly or repeatedly with automatic recording and saving of results for review and printing. The instrument is intended for production and use of nanopowders.

Application:
Suitable for dry powders and emulsions in research institutes and industries such as electronic materials, chemicals, pharmaceuticals, pesticides, pigments, inks, titanium dioxide, ceramics, construction materials, cosmetics, abrasives, coatings, food, calcium carbonate, talc, kaolin, papermaking, alumina, rare earths, catalysts, inhibitors, fuel particles, foaming agents, refractories, cement, graphite and similar sectors.

Instrument Features:

• Fully automatic testing with automatic optimization of test parameters to maximize accuracy and repeatability; simple operation and stable performance.
• Two selectable test modes (automatic circulation and manual); software-switched operation supports a fixed automatic circulation sample cell and a thin-slit non-circulation sample cell.
• Data presented in tables and curves across 108 grades.
• Results available as volume distribution and number distribution, with cumulative distribution, frequency distribution, D10/D50/D90 values, mean particle size and specific surface area.
• Three testing stages adjustable by sample characteristics: fast (~40 s), medium (~70 s) and slow (~120 s).
• Output can be printed directly or exported to BMP and text files. Software compatible with Windows XP and Windows 7; Chinese and English interfaces available.

Main technical parameters:

• Model: PA-1198NL
• Measurement range: 1 nm – 10000 nm
• Measurement accuracy: repeatability error of average particle size ≤ 5%
• Test modes: transmission (for low concentration) and reflection (for high concentration); switchable and available in automatic or manual modes
• Light source: 405 nm high-power semiconductor laser; reflection angle 60°, scattering angle 90°; Laser product grade: Level 1
• Detector: high-gain, low-noise photomultiplier tube (PMT)
• Sample cells: non-circulating cell 2.5 mL; circulating cell 300 mL
• Number of channels: ≥2000 correlator channels
• Temperature range: 5 °C – 45 °C; temperature control accuracy 0.01 °C
• Power: AC 220V ±10%, 50 Hz
• Dimensions (L×W×H): 680 × 340 × 530 mm
• Main components: main unit (optical system, dispersion and circulation systems), analysis software, particle size standard, communication and power cables, manuals, tools (computer and printer not included)

PA-1198NL Configuration:

• PA-1198NL nanometer particle size analyzer — 1 set
• Dedicated particle size analysis software — 1 set
• Instrument operating instructions — 1 pc
• Factory inspection report — 1 pc
• Test certificate — 1 pc
• Certificate of conformity — 1 pc
• Power cable — 1 pc
• Instrument communication cable — 1 pc
• Screwdriver — 1 pc
• Sample injector — 1 set
• Sealing pad — 1 pair (spare)
• Loop hose — 3 pcs (spare)
• Drain pipe — 1 pc
• Sample (with test report) — 1 batch
• Fuse — 1 pc (spare)
• Sampling spoon — 1 pc
• Silk cloth — 1 pack

Technical specifications:

• Model: PA-1198NL
• Measurement range: 1 nm – 10000 nm
• Repeatability error (average particle size): ≤ 5%
• Test modes: transmission and reflection (switchable; automatic and manual)
• Laser: 405 nm high-power semiconductor laser (reflection angle 60°, scattering angle 90°)
• Detector: high-gain, low-noise PMT
• Sample cells: non-circulating 2.5 mL; circulating 300 mL
• Channels: ≥2000 correlator channels
• Temperature: 5–45 °C (accuracy 0.01 °C)
• Power: AC 220V ±10% 50 Hz
• Dimensions: 680 × 340 × 530 mm
• Included: main unit, analysis software, particle size standard, cables, manuals, tools (computer and printer not included)
