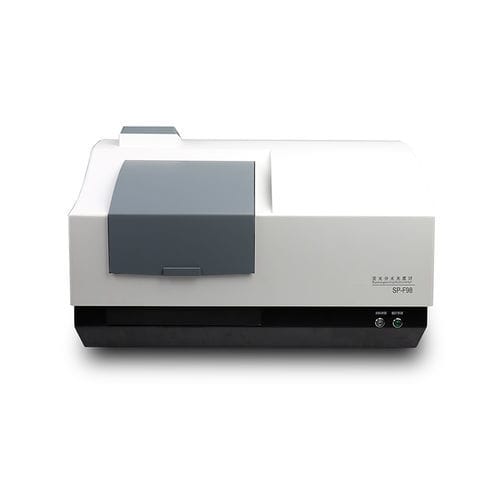

Time-integration spectrofluorometer SP-F98

fluorescence lifetime measurement

Short description
SP-F98 fluorescence spectrophotometer (spectrofluorometer) providing rapid wavelength scanning and high sensitivity for laboratory and industrial fluorescence analysis.

Key features

• High signal-to-noise ratio: horizontal-beam design with large-diameter concave-grating monochromator for improved luminous efficiency; water Raman peak S/N ≥250 (P-P) or 800 (RMS).
• Ultra-fast scanning: wavelength scanning up to 60000 nm/min enables 3D fluorescence spectra acquisition within 1 minute.
• Adjustable spectral bandwidths: excitation and emission bandwidths selectable at 1, 2, 5, 10 or 20 nm for high-resolution measurements.
• Accurate wavelength control: precision drive and automatic calibration with wavelength accuracy ±0.4 nm and repeatability ≤0.2 nm.
• Advanced scanning modes: 3D fluorescence scanning, time-resolved 3D scanning, synchronous wavelength-difference scanning and constant-energy differential synchronous scanning.
• Low sample volume: minimum 0.5 mL using a 10 mm cuvette.
• Quality components: 150 W xenon lamp and Hamamatsu photomultiplier detector.
• Large sample chamber and programmable optical gate to stabilize photo-reactive signals and ease accessory handling.
• Comprehensive measurement accessories included (cuvette holders, multi-fluorescent sample holder, 200 µL microcentrifuge tube adapter, capillary adapters, semi-automatic injection fluorescence attachment, film and powder holders, sheathed cell holder, etc.).

Specifications
Model: SP-F98
Detection sensitivity (water Raman peak S/N): ≥250 (P-P) or 800 (RMS)
Excitation bandwidths: 1 nm / 2 nm / 5 nm / 10 nm / 20 nm
Emission bandwidths: 1 nm / 2 nm / 5 nm / 10 nm / 20 nm
Minimum sample volume: 0.5 mL (10 mm cuvette)
Wavelength accuracy: ±0.4 nm
Wavelength repeatability: ≤0.2 nm
Light source: 150 W automatic-deodorizing xenon lamp (Hamamatsu, Japan)
Optical system: double-grating monochromator with automatic wavelength scanning and excitation double-beam ratio monitoring
Detector: Hamamatsu photomultiplier tube
Excitation range: 200–900 nm
Emission range: 200–900 nm
Wavelength scanning speed: up to 60000 nm/min (10 positions)
Measurement linearity: ≥0.995
Gain adjustment: 1–17 positions
Integration response times: 8 s to 20 ms (7 settings)
Data output: Microsoft Excel, BMP
Data transmission: USB 2.0
Light value range: -9999 to 9999
Peak intensity repeatability: ≤1.5%
Power supply: 220 V/50 Hz or 110 V/60 Hz
Power consumption: 200 W
Dimensions (W×D×H): 610 × 460 × 365 mm
Weight: 21 kg

Technical specifications

• Model: SP-F98
• Detection sensitivity: ≥250 (P-P) or 800 (RMS)
• Bandwidths: 1/2/5/10/20 nm
• Wavelength accuracy / repeatability: ±0.4 nm / ≤0.2 nm
• Scanning speed: up to 60000 nm/min
• Range: 200–900 nm
• Light source / detector: 150 W xenon lamp / Hamamatsu PMT
• Minimum sample volume: 0.5 mL (10 mm cuvette)
• Data: Excel & BMP; USB 2.0
• Power: 220 V/50 Hz or 110 V/60 Hz; 200 W
• Dimensions / weight: 610 × 460 × 365 mm; 21 kg
