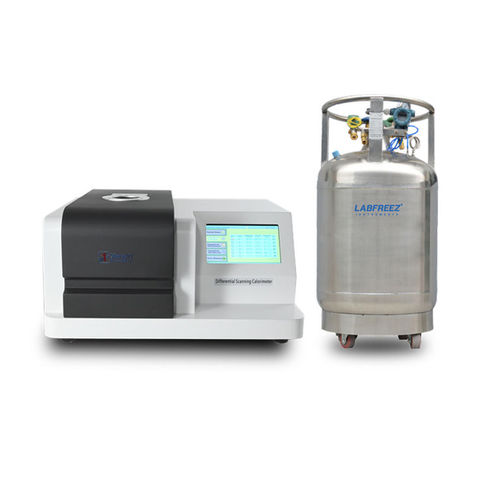

Differential scanning calorimeter DSC3000L

heat-flowhigh-sensitivitydifferential

Product introduction:
The DSC3000L differential scanning calorimeter measures heat flow associated with thermal transitions as a function of temperature. It is intended for polymer R&D, performance testing and quality control, and supports analysis of glass transition, melting, crystallization, phase transitions and oxidation induction time (OIT).

Main Features:

• Redesigned oven structure for improved baseline stability and resolution
• Integrated digital flow meter for precise atmosphere control; test data exportable to database
• Dual control: local mainframe and PC software control with touch display

Technical specifications:

• Model / SKU: DSC3000L
• DSC range: 0 ~ ±500 mW
• Temperature range: (-100°C) ~ 600°C (liquid nitrogen cooling for -100°C)
• Heating rate: 1 ~ 80 °C/min
• Cooling rate*: 1 ~ 20 °C/min
• Temperature resolution: 0.1 °C
• Temperature fluctuation: ±0.1 °C
• Temperature repeatability: ±0.1 °C
• DSC noise: 0.01 μW
• DSC resolution: 0.01 μW
• DSC accuracy: 0.1 μW
• DSC sensitivity: 0.1 μW
• Control modes: programmed heating, isothermal control, programmed cooling (fully automatic)
• Scan types: heating scan, cooling scan*
• Atmosphere control: embedded digital flow meter with software control
• Display: 7-inch 24-bit color LCD touch screen
• Data interface: standard USB
• Calibration: supplied with standard material and one-key calibration for temperature and enthalpy correction
• Warranty: 5 years
• Note: *optional; technical indicators can be adjusted to customer requirements
