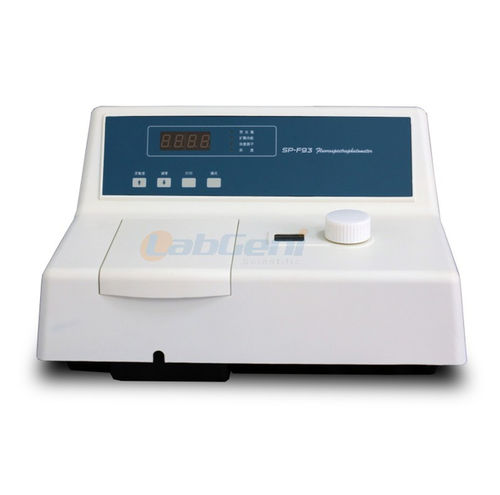

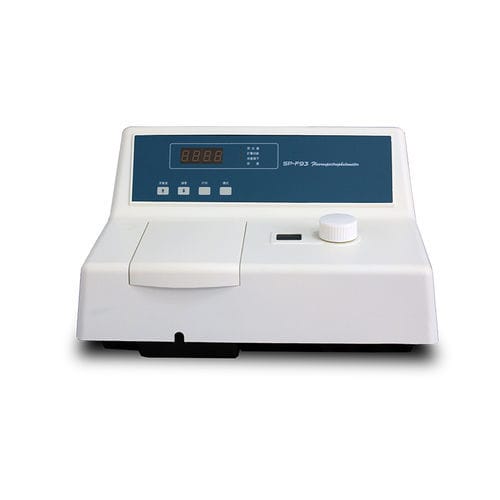

Compact spectrofluorometer SP-F93

filter

Overview
The SP-F93 and SP-F93A are benchtop fluorescence spectrophotometers for quantitative and qualitative fluorescence measurements in laboratory environments. The models differ by available excitation filter sets and central wavelengths; both use LED excitation and a photomultiplier detector for sensitive emission measurement.

Features

• C-T manual grating monochromator with 1200 lines and non-spherical reflecting mirrors to improve sensitivity.
• High-intensity LED cold-light excitation with low fluorescence background; replaceable narrow-band excitation filters for selectable central wavelengths.
• Original Hamamatsu photomultiplier tube for sensitive emission detection and low noise.
• Automatic zero adjustment and automatic background subtraction; eight-stage sensitivity (gain) control and wide dynamic range for accurate measurement of small sample changes.
• Replaceable EX wavelength filter system (user-serviceable) for quick maintenance and configuration flexibility.
• RS-232C interface; optional data processing software for data storage, transmission and generation of standard calibration curves.
• Compact benchtop design and low power consumption suitable for laboratory and educational use.

Specifications

• Model: SP-F93 / SP-F93A
• Detection sensitivity: quinine sulfate detection limit 1 x 10⁻⁹
• Excitation bandwidth: 10 / 20 nm
• Emission bandwidth: 12 nm
• Emission wavelength accuracy: ±2.0 nm
• Emission wavelength repeatability: ≤1.0 nm
• Light source: high-intensity LED cold-light source
• Optical system: C-T manual grating monochromator (1200 lines)
• Fluorescence receiver: Hamamatsu photomultiplier
• Central wavelengths: SP-F93: 365 nm; SP-F93A: 365, 405, 470, 515 nm
• Excitation range: 250–600 nm
• Emission range: 360–650 nm
• Measurement linearity: ≥0.995
• Gain adjustment: 0–7 positions (optional)
• Data interface: RS232
• Light value range: 0.00–250
• Peak intensity repeatability: ≤1.5%
• Power: 220 V/50 Hz or 110 V/60 Hz; consumption 35 W
• Dimensions: 360 × 320 × 205 mm
• Weight: 7 kg / 9 kg
