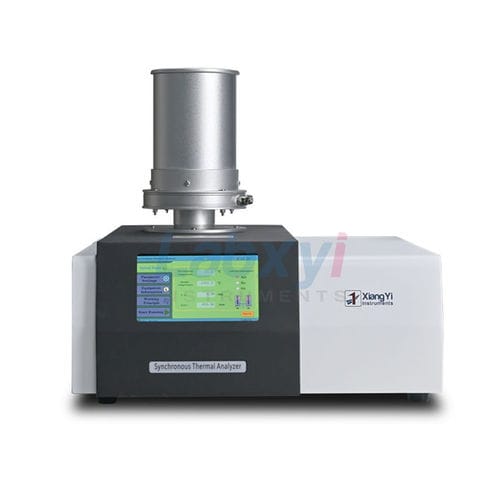

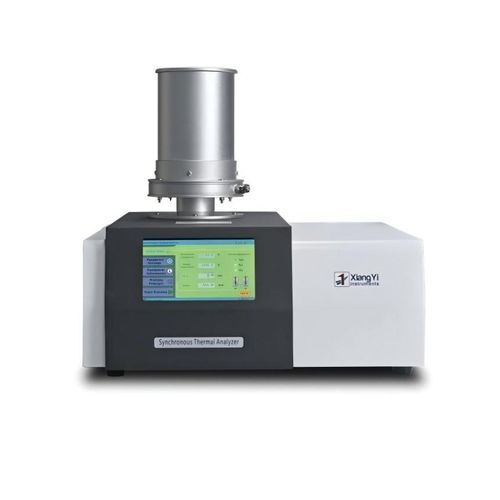

DSC analyzer STA2000

rubberfor quality controlfor pharmaceutical products

Overview
STA2000 synchronous thermal analyzer combines TGA (thermogravimetric analysis) with DTA or DSC to record TG and DTA/DSC signals from the same sample during a single run. Designed for laboratory R&D and quality control, it provides high-resolution temperature and mass-change data across a wide temperature range.

Applications
Widely used in plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic and metal materials, composites, and materials research for process optimization and quality monitoring.

Measurement and research characteristics

• DSC: melting/crystallization, phase transitions, reaction temperatures and enthalpies, combustion heat, specific heat capacity.
• TG: thermal stability, decomposition, redox processes, adsorption, free water and binder content, component proportion calculations.

Structural advantages

• Furnace heated by double-row winding of nickel-chromium alloy wire (STA2000) for reduced interference and high-temperature resistance.
• Tray sensor made of nickel-chromium alloy for high temperature, oxidation and corrosion resistance.
• Power supply and circulating cooling sections separated from the main unit to minimize heat and vibration impact on the micro-thermal balance.
• Open-top structure for easy sample loading and reduced risk of damaging the sample rod.
• Main unit equipped with insulation to isolate furnace heat from the chassis and micro-thermal balance.
• Interchangeable furnace body available on request.

Controller and software

• 32-bit ARM processor (Cortex-M3) for fast sampling and processing.
• 24-bit four-channel AD sampling for DSC, TG and temperature signals.
• Independent control of power and water-circulation parts by an 8-bit microcontroller; cooling subsystem managed in coordination with the host.
• USB two-way communication enables remote operation and PC control of instrument parameters, start/stop functions.
• 7-inch 24-bit full-color touch screen for local operation; TG calibration available on-screen.

Instrument interface
Images of the instrument interface and layout are provided on the product page to illustrate connections and user controls.

Technical parameters

• Model: STA2000 (STA200) synchronous thermal analyzer
• Temperature range: RT to 1150°C
• Temperature resolution: 0.01°C
• Temperature fluctuation: ±0.1°C
• Furnace & sensor material: nickel-chromium
• Heating rate: 0.1–100°C/min
• Temperature control: PID (heating, hold, cooling)
• Hold time: 0–300 min (adjustable)
• Balance range: 0.01 mg–3 g (extendable to 30 g)
• Program control: multi-stage heating profiles
• DSC range/resolution: 0 to ±600 mW / 0.001 mW
• Weighing accuracy: 0.01 mg
• Display: 7-inch 24-bit color touch screen
• Atmosphere device: built-in gas flow meter with two-way switching and flow control
• Atmosphere modes: inert, oxidizing, reducing, static, dynamic
• Software: intelligent software for automatic TG recording, data processing and report generation
• Curve scan modes: heating scan, cooling scan
• Power supply: AC220V 50Hz with isolation shield for weighing system
• Communication: USB

Packing list

• HOST — 1 set
• U disk with software — 1 pc
• Data line — 2 pcs
• Power cable — 1 pc
• Ceramic crucible — 200 pcs
• Ceramic cover — 2 pcs
• Metal cover — 1 pc
• Raw tape — 1 L
• Pure tin — 1 bag
• 10A fuse — 5 pcs
• Sample spoon / sample pressure bar / tweezers — 1 each
• Ear ball — 1 pc
• Trachea — 2 pcs
• Counterweight — 1 pc
• Sensor — 1 pc
• Manual — 1 pc
• Warranty — 1 pc
• Certificate — 1 pc

Optional list

• STAC0011 — Ceramic crucibles
• STAC0012 — Aluminum crucibles
• STAC0013 — Liquid cooling module with thermostat

Key specifications

• Model: STA2000
• Temperature range: RT to 1150°C
• Temperature resolution: 0.01°C; fluctuation ±0.1°C
• Balance range: 0.01 mg to 3 g (extendable to 30 g)
• DSC range: ±600 mW; DSC resolution 0.001 mW
• Heating rate: 0.1–100°C/min
• Display: 7-inch 24-bit color touch screen
• Atmosphere modes: inert/oxidizing/reducing/static/dynamic
• Communication: USB
• Power: AC220V 50Hz (isolation shield for weighing system)
