Optical particle size analyzer PA-2000BI

digital image processingstatic image analysisfor the food industry

Product overview

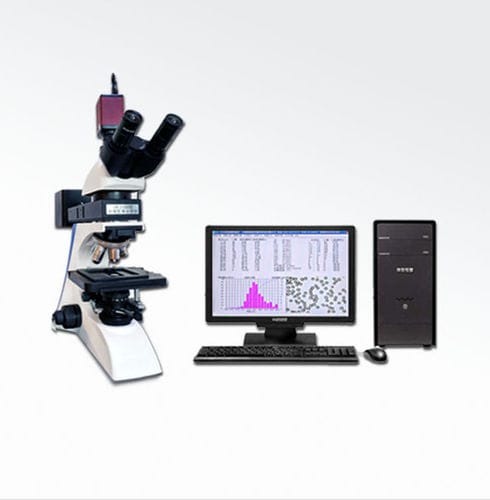

PA-2000BI is an image analysis system composed of an optical microscope, digital CCD camera, dedicated image processing and analysis software, computer and printer. It provides morphological visualization and quantitative characterization of powders to complement laser particle size analysis and improve process and quality control.

Particle image test principle
Particles are captured as images on the sensor; each pixel represents a defined size. By detecting particle outlines and counting pixels per particle, the system computes equivalent-area diameter, aspect ratio and circularity for each particle, then aggregates results to generate particle size and shape distributions.

Main process of image analysis
The sample is magnified by the microscope and imaged by the camera. Images are transferred to the computer where the software identifies particles and calculates number, area, perimeter, diameter, volume and morphological parameters. Output includes distributions for aspect ratio, circularity, particle size and statistical metrics such as D10, D50, D90, D97, mean particle size and surface area.

Application area

• Mineral powders: diamond, silicon carbide, wollastonite, quartz, barium sulfate, graphite, boron carbide, white corundum, cerium oxide, metal powders.
• Battery & advanced materials: lithium cobaltate, carbon powders, various metal powders.
• Other materials: glass beads, cement, pharmaceuticals, food ingredients, pigments, dust, pesticide formulations, catalysts, slurries and diverse powders.
• Also used to verify or complement other granularity testing methods.

Technical Parameters
Model: PA-2000BI
Analysis items: Particle size distribution, aspect ratio distribution, circularity distribution, etc.
Test range: 0.5–3000 μm
Maximum magnification: 4000×
Maximum resolution: 0.1 μm
Microscope: Transmission/reflection microscope (options: domestic / metallographic / imported)
Digital camera (CCD): 3MP / 5MP
Eyepieces: 10X, 16X
Objectives: 5X, 10X, 20X, 50X, 100X
Ruler scale: 10 μm
Software OS: Windows 7 32-bit
Interface: High-speed USB

Report output

• After image processing the system automatically counts particles and provides area, perimeter, volume, diameter, circularity distribution, aspect ratio distribution and particle size distribution with characteristic values such as D10, D50, D90, D97, mean particle size and surface area.
• Reports can include a color thumbnail of the sample; header fields can show sample name, testing unit and dispersion medium. Multiple report formats are selectable.

caractéristiques / spécifications techniques

• Model: PA-2000BI
• Test range: 0.5–3000 μm
• Max magnification: 4000×
• Max resolution: 0.1 μm
• Microscope options: transmission/reflection (domestic / metallographic / imported)
• CCD camera: 3MP or 5MP
• Eyepieces: 10X, 16X
• Objectives: 5X, 10X, 20X, 50X, 100X
• Ruler scale: 10 μm
• Software OS: Windows 7 32-bit
• Interface: High-speed USB
