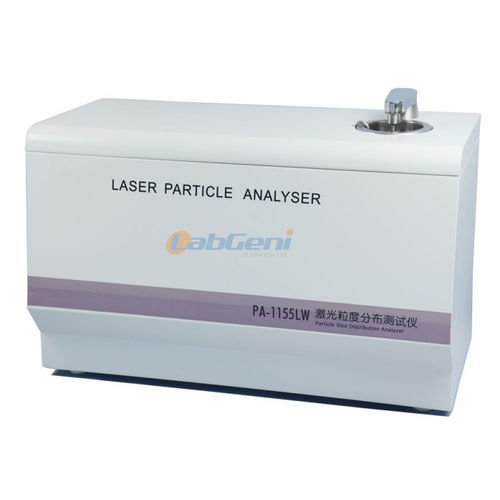

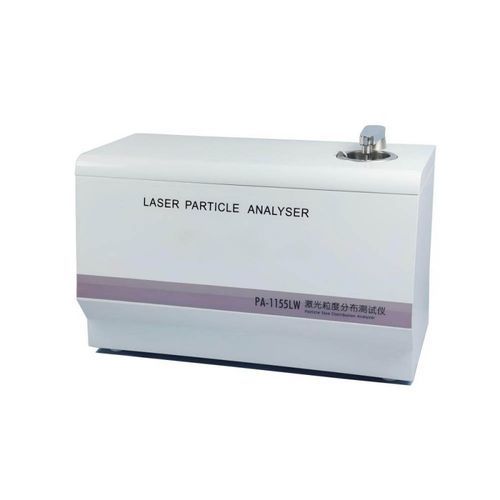

Laser particle size analyzer PA-1155LW

laser light scatteringlaser diffractionfor the food industry

Description
PA-1155LW is an automatic laser particle size analyzer designed for wet dispersion measurements. The instrument integrates computer-controlled optical alignment, zero calibration and fully automated sample handling including ultrasonic dispersion, mechanical stirring, cyclic sampling to the detection zone and automatic cleaning. Typical analysis time is under 2 minutes per sample and results are recorded, stored and printable via the software.

Application range
Molybdenum, magnesium, zinc, aluminium powders; lithium carbonate, strontium carbonate; white carbon black, wollastonite, bentonite, zirconium silicate; calcium carbonate, talc, kaolin; coatings, cement, food, pesticides, rare earths, catalysts, foaming agents, mica, abrasives, fillers, graphite, pigments, pharmaceuticals, chemicals, electronics, papermaking, metallurgy, ceramics and other industries for solid powders or emulsions particle size distribution testing.

Instrument Features

• Fully integrated system: optics, electronics, sample cell, ultrasonic disperser, mechanical stirrer, circulation and automatic cleaning under computer control.
• Built-in ultrasonic disperser and mechanical stirrer minimize residence time in tubing, reducing re-agglomeration and improving repeatability and stability comparable to international instruments.
• Compact integrated design combining measurement unit and sampling system for simplified use and maintenance; electrical anti-interference design increases operational reliability.
• Serial data transmission enables easy connection to laptops and desktops for a complete particle size testing system.
• Software available in English and Chinese with a user-friendly interface. The automated workflow (parameter selection, centering, background, concentration adjustment, signal acquisition, analysis, reporting and cleaning) runs after pressing the "Auto Test" command.
• Reports include cumulative and interval particle size distributions, histograms and key metrics such as D10, D50, D90, D97 and mean particle size.
• Preset optimal test modes allow storing parameters (refractive index, distribution mode, concentration, ultrasonic time, sampling time, cycle rate, cleaning time) for reproducible results.
• Rugged design: shockproof, dustproof and moistureproof for transport and operation in demanding environments.

Performance
Test range: 0.1 µm – 155 µm
Principle: scattering and diffraction (Mie theory) with proprietary calculation algorithms
Sampling method: Wet method; built-in ultrasonic generator power 50W
Sampling system: cyclic sampling; sample dispersion cell volume 500 mL
Repeatability: D50 repeatability error < 1% (national standard material)
Test time: < 2 minutes per sample
Laser: semiconductor laser 635 nm, 3 mW, service life > 70,000 h, Class 1
Operating environment: 5–35 °C; humidity <85%
Interface: RS232 serial port
Software: Windows (supports English and Chinese; listed XP/7 32-bit)
Power consumption: ~300 W total
Working power: AC 220V ±10% 50Hz
Dimensions (L×W×H): 740 × 340 × 460 mm; Weight ≈ 65 kg

Main parameters (table)
Model: PA-1155LW
Test principle: Mie scattering / diffraction with proprietary analysis software
Measuring range: 0.1 µm – 155 µm
Measurement accuracy: Repeatability error <1% (national standard material)
Measure time: <2 minutes per sample
Sampling method: Wet method; ultrasonic generator power 50W
Sample detection cell: 60 mm × 60 mm optical glass
Sample dispersion cell: 500 mL, 304 stainless steel
Light path: Inverted Fourier optical system; parallel light path complying with ISO13320 / ISO13321
Detector: 48-level multiple detector
Signal source: Imported semiconductor laser 635 nm, 3 mW, lifespan >70,000 h, Class 1
Ultrasonic: Built-in 60W; dispersion time, stirring and cycle time adjustable
Report: Particle size distribution data and graphs; D10, D50, D75, D84, D90, D97, mean size and specific surface area available
Working power: AC220V ±10% 50Hz

Configuration

• 1 × PA-1155LW laser particle size analyzer — single station with ultrasonic disperser, stirrer and circulation system
• 1 × Particle size analysis software
• 1 × Operating manual
• 1 × Factory inspection report
• 1 × Test certificate
• 1 × Certificate of conformity
• 1 × Power cable
• 1 × Dedicated communication cable
• 1 × Screwdriver
• 3 × Loop hoses (spare)
• 1 × Inlet valve
• 1 × Water inlet pipe
• 1 × Drain pipe
• 1 × Cloth (spare)
• 1 × Sealing pad (spare)
• 1 × Dispersant (bottle)
• 1 × Approved sample
• 1 × Fuse (spare)
• 1 × Sampling spoon

Technical specifications

• Test range: 0.1 µm – 155 µm
• Principle: Mie scattering / diffraction with proprietary software
• Sampling: Wet method; built-in 50W ultrasonic and mechanical stirring; cyclic sampling
• Dispersion cell: 500 mL, 304 stainless steel
• Detection cell: 60 mm × 60 mm optical glass
• Detector: 48-level
• Laser: 635 nm, 3 mW, >70,000 h, Class 1
• Repeatability: D50 <1% (national standard)
• Test time: <2 minutes per sample
• Software environment: Windows (Chinese/English supported)
• Interface: RS232
• Power: AC 220V ±10% 50Hz; ~300W
• Dimensions: 740 × 340 × 460 mm; Weight ≈ 65 kg
• Design: integrated measurement and sampling with automatic centering and cleaning; shockproof/dustproof/moistureproof
