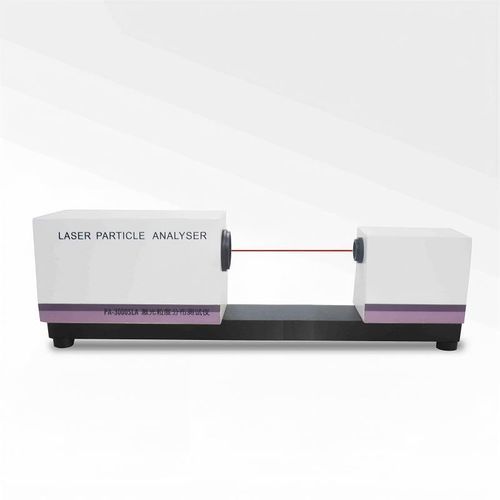

Optical particle size analyzer PA-3000ASL

laserlaser diffractionlaser light scattering

Product description
The PA-3000ASL is a conjoined spray laser particle size analyzer based on full-scale Mie scattering theory and proprietary analysis algorithms. Housed in a fully sealed metal enclosure with strong electromagnetic shielding, the instrument provides automated, high-resolution particle size analysis for water mist, oil mist, smoke and powder aerosols. The main and auxiliary units are fixed at a 400 mm spacing with automatic optical centering and computer-controlled sampling to ensure repeatable, rapid measurements.

Overview
Designed for testing droplets from injectors, fire-extinguishing nozzles, spray-drying systems and aerosol generators. The PA-3000ASL supports fast, representative sampling of small-volume specimens and delivers high resolution and measurement stability thanks to a precision mechanical structure and proprietary control software. Independent intellectual property enables configurable quality-control workflows.

Application area
Suitable for nozzle manufacturing, medical spray development, water-mist systems, industrial smoke and fume analysis, powder mist characterization, aerosol production control, and research laboratories in scientific institutions.

Reports
The software interface supports English and Chinese. Multiple report formats are available (cumulative distribution, normal distribution, RR distribution, etc.). Reports include cumulative particle size distribution curves, interval distributions and histograms, characteristic diameters (D3, D10, D25, D50, D75, D84, D90, D97), volume and area mean diameters, and specific surface area.

Instrument advantages

• Configurable between main and auxiliary units (400 mm spacing); controller automates sample input and isolation for liquid or gas, enabling unattended test cycles.
• Large-diameter Fourier lens with wide field of view, fully sealed and pollution-resistant optical path, and automatic optical centering to improve resolution and data accuracy.
• On-demand calibration with randomly distributed standard particle plates for verification at any time.
• Continuous automatic testing with one-second reporting intervals and persistent recording of multiple measurements; includes statistical comparison functions.
• Full-metal chassis for robust electromagnetic shielding; mechanically optimized structure provides optical stability and strong vibration resistance.

Technical Parameters

• Model / SKU: PA-3000ASL
• Measuring range: 0.1 µm – 3000 µm
• Repeatability error: ≤1% (D50 deviation)
• Accuracy error: ≤1% (D50 deviation)
• Laser: imported semiconductor laser, 650 nm
• Detector resolution: 128 levels
• Instrument dimensions (L×H×W): 1130 × 340 × 200 mm
• Instrument weight: ≈50 kg
• Distance between main and auxiliary unit: 400 mm
• Power supply: AC 220 V ±22 V, 50 Hz ±0.5 Hz
• Test time: 1 s per test; supports single or multiple automatic tests
• Optical path: parallel beam path with Fourier lens
• Operating environment: 5 °C to 35 °C; humidity <85%
