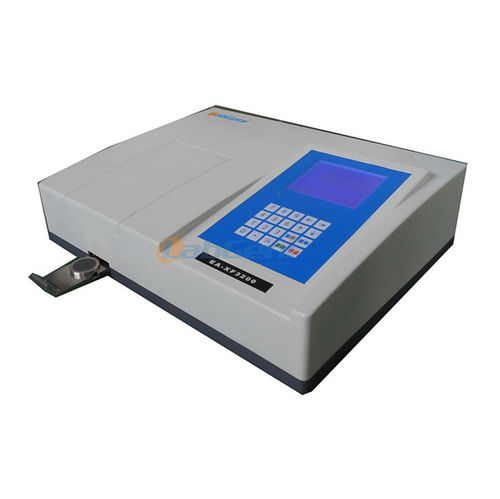

XRF spectrometer EA-XF3200

fluorescenceX-ray fluorescencefor process and scientific applications

Short description
The EA‑XF3200 X‑fluorescence sulfur and calcium analyzer uses X‑ray fluorescence physical analysis to measure the percentage content of SO3 and CaO in materials such as cement and gypsum. Results are available from 30 s per measurement. The method is non‑destructive and requires no chemical reagents.

Main Usage
The EA‑XF3200 is designed for quality control in cement production and related materials. It rapidly estimates SO3 and CaO contents and the relative amount of admixtures, enabling timely adjustment of gypsum ratio and clinker content. This provides faster process feedback than conventional 3/7/28 day strength tests and helps manufacturers ensure products meet composition limits and regulatory standards.

Main Feature

• Wide analysis capability: effective analysis range from 0.01% to 100% with practical analysis width up to 15% for targeted components.
• Fast measurement: percentage content of SO3 and CaO produced in 30 s per interval.
• Non‑destructive testing: samples remain intact and can be re‑used.
• Chemical‑free operation: no reagents, no radioactive source, low emissions and low power consumption.
• Integrated data management: large storage capacity for results and instrument self‑checks; on‑screen query of past data.
• Compact microcomputer integration and user‑oriented LCD menu in English for straightforward operation.
• Compliant with GB/T19140 (general principles of cement X‑ray fluorescence analysis).

Technical Indicator

• Analysis range: 0.01%–100%.
• Analysis precision (std. dev.): SO3 ≤ 0.04%, CaO ≤ 0.05%.
• Analysis width: up to 15% (example: CaO 37%–52% selectable by calibration curve).
• Analysis time: n × 30 s (n = 1–5).
• Operating conditions: AC 200 V–240 V; ambient temperature 0–40 ℃; relative humidity < 85%.
• Power consumption: < 30 W.
• Dimensions: 468 × 368 × 136 mm.
• Weight: 13.8 kg.

Specifications

• Model name: X‑Fluorescence Sulfur Calcium Analyzer.
• SKU: EA‑XF3200.
• Analysis range: 0.01%–100%.
• Analysis precision: SO3 ≤ 0.04% (std. dev.), CaO ≤ 0.05% (std. dev.).
• Analysis width: up to 15% (example CaO 37%–52%).
• Analysis time: multiples of 30 seconds (1–5 intervals).
• Power supply: AC 200 V–240 V.
• Operating temperature: 0–40 ℃.
• Relative humidity: < 85%.
• Power consumption: < 30 W.
• Dimensions: 468 × 368 × 136 mm.
• Weight: 13.8 kg.
