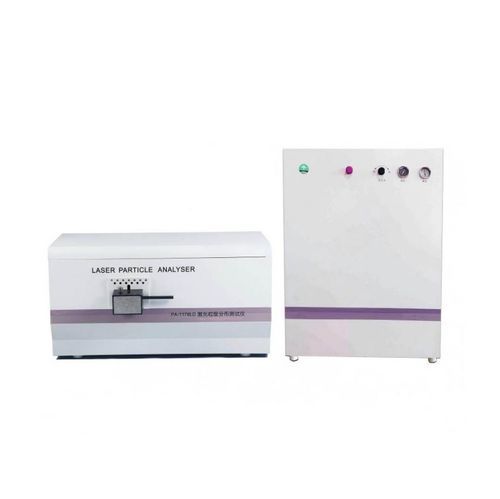

Laser particle size analyzer PA-1178LD

laser diffractionfor the food industrylaboratory

Overview
PA-1178LD is a dry laser particle size analyzer using full-range Mie scattering theory for fast, automatic measurement of powder particle size distributions where wet methods are unsuitable. The instrument implements instantaneous dispersion and measurement to ensure repeatable, stable results and is suited for routine industrial laboratory use.

Application
Suitable for particle size testing of dry powders in magnetic materials, lithium carbonate, pharmaceutical powders, cement, powder coatings, chemicals, food ingredients, pesticides, electronics, papermaking, metallurgy, ceramics, building materials, abrasives, calcium carbonate, talc, kaolin, alumina, rare earths, catalysts, blowing agents, fillers, graphite, pigments and similar sectors.

Instrument Features

• High-resolution photodetector array design (92 detectors) for improved measurement detail.
• Direct testing of dry powders without dispersant or solvent.
• Fully automatic test sequence via user-friendly software: parameter selection, centering, background, concentration adjustment, signal sampling, analysis and report generation are computer-controlled.
• Software supports Chinese and English, multiple report formats (cumulative, normal, RR), and exports particle size distributions, histograms and standard D-values (D3, D10, D25, D50, D75, D84, D90, D97, D98).
• Integrated opto-mechanical-electrical design with sealed enclosure, auxiliary filtration and dust extraction; oil-free silent compressor included; system reclaims waste to minimize contamination.

Instrument main parameters
Model: PA-1178LD
Test principle: Full range Mie scattering theory
Measuring range: 0.01µm–3000µm
Measurement accuracy: ≤3% (national standard material D50)
Measure time: ~1 minute per sample
Sample volume: 2 g–10 g
Light path: Parallel beam, Fourier lens, automatic centering
Software environment: Windows (PC)
Operation: Fully automatic, PC-controlled
Light source: Imported semiconductor laser; life >70,000 hours
Detector: 128-level multi-element detector; three-dimensional array (front, back, side) with max detection angle 165°
Dispersion method: Dry turbulent dispersion with unique sampling device; short dispersion time
Dispersion medium: Compressed air / Nitrogen (use N2 for air-reactive powders)
Dispersion time: <5 s per measurement
Dispersion pressure: 0.1–0.8 MPa adjustable
Output: Particle size distribution tables and graphs; D-values (D10–D98), mean particle size, specific surface area
Power: AC220V ±10%, 50Hz

Configuration

• 1× PA-1178LD dry laser particle size analyzer (main unit)
• 1× auxiliary instrument (filter/separator, dust storage)
• 1× oil-free silent air compressor
• 1× dedicated particle size analysis software
• Documentation: operating manual, factory inspection report, test certificate, certificate of conformity (PC copies)
• Tools & spare parts: power strip, power cables, communication cable, oxygen tube, dust extraction pipe, screwdriver, Allen wrench, sample (with test report), spare aprons, sample slots, glass cover (large lens), serial cable, ear wash ball, brush, sampling spoon, spare fuse

Technical specifications

• Model: PA-1178LD
• Measuring range: 0.01µm–3000µm
• Test principle: Full range Mie scattering theory
• Accuracy: ≤3% (national standard material D50)
• Sample volume: 2 g–10 g
• Test speed: ~1 minute/sample
• Dispersion: Dry turbulent dispersion; pressure 0.1–0.8 MPa; time <5 s
• Detector: 128-level multi-element 3D array; max angle 165°
• Light source: Imported semiconductor laser; life >70,000 h
• Operation: Fully automatic, PC-controlled software (Windows); Chinese & English versions
• Power: AC220V ±10%, 50Hz
• Outputs: Particle size distribution, D-values (D10–D98), mean size, specific surface area
