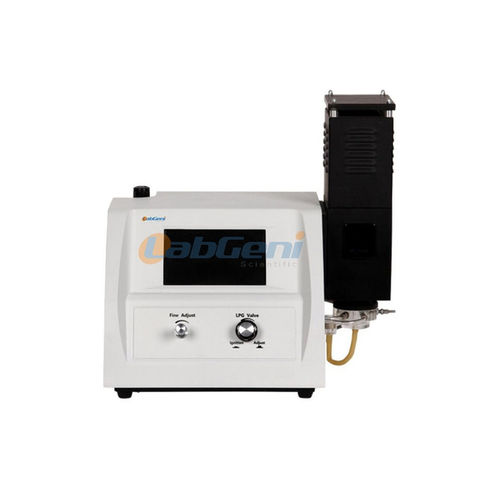

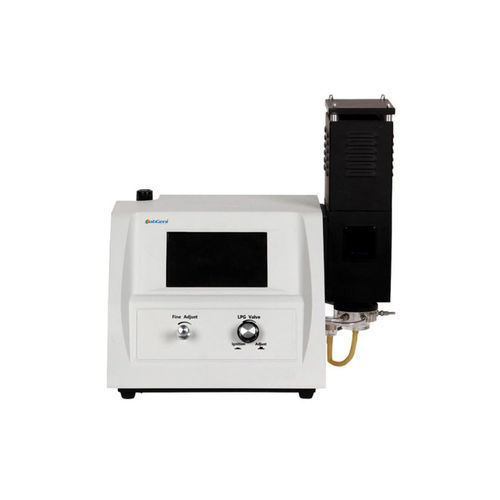

Materials analysis photometer FP series

flamefor laboratorycompact

Short description
FP series multi-element flame photometer for quantitative measurement of alkali and alkaline earth metals (K, Na, Li, Ca, Ba depending on model). Compact design with a 7-inch color capacitive touch LCD and liquefied gas operation. Stores up to 200 test datasets and supports standard curves with up to 10 points per curve.

Detailed introduction
FP series flame photometers provide direct concentration readout for selected elements and configurable detection channels (3–5 depending on model). The instrument supports automatic correlation coefficient calculation, element range switching, and data export via USB. Optional built-in thermal printer and PC operating software are available. The delivery set includes a small air compressor and a flame safety protection device.

Main features:

• Direct concentration reading for K, Na, Li, Ca, Ba (model-dependent).
• Detection range switching for K, Na, Li, Ca, Ba (model-dependent).
• Automatic correlation coefficient calculation.
• Pre-selected flame size and integrated flame safety protection.
• Optional built-in thermal printer for direct printing.
• USB communication port and PC connectivity; optional operating software.
• Uses liquefied gas as fuel.

Specifications

• Models: FP6450, FP6440, FP6432, FP6431, FP6430
• Display: 7-inch color capacitive touch LCD
• Output: Direct concentration value
• Reading range: 0.000–999.9
• Test elements: FP6450: K, Na, Li, Ca, Ba; FP6440: K, Na, Li, Ca; FP6432: K, Na, Ba; FP6431: K, Na, Ca; FP6430: K, Na, Li
• Number of channels: FP6450: 5; FP6440: 4; FP6432: 3; FP6431: 3; FP6430: 3
• Detection limit (mmol/L): K ≤0.004; Na ≤0.008; Li ≤0.015 (where applicable); Ca ≤0.050 (where applicable); Ba ≤0.044 (where applicable)
• Linearity error (mmol/L): K ≤0.005; Na ≤0.03; Li ≤0.021 (where applicable); Ca ≤0.075 (where applicable); Ba ≤0.066 (where applicable)
• Response time: <8 s
• Minimum suction volume: <6 ml/min
• Stability: With continuous injection of standard solution, within 15 s relative maximum change ≤ 3%; one test per minute, 6 tests total, maximum instrument change ≤ 15%
• Repeatability: ≤3%
• Graph display: Yes
• Printer: Optional (built-in thermal)
• USB interface: Yes
• Computer connection: Yes

Accessories

• Host: 1 set
• Air compressor: 1 set
• Spare parts: 1 set
