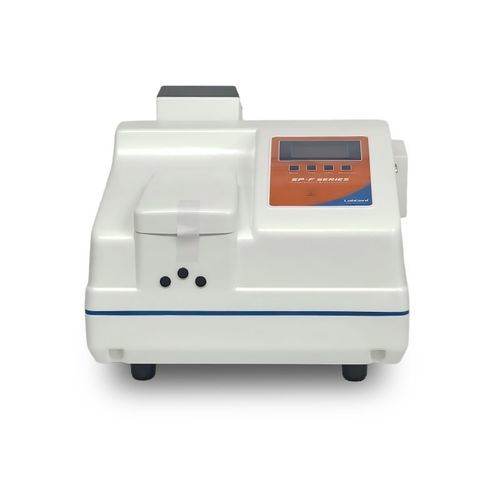

Fluorescence lifetime measurement spectrofluorometer SP-F97 series

compact

Product overview
SP-F97, SP-F97pro and SP-97xp are bench-top fluorescence spectrometers delivering excitation–emission measurements across 200–900 nm. The instruments combine a double-grating monochromator, excitation dual-beam ratio monitoring and Hamamatsu xenon light source plus photomultiplier detection to support sensitive, fast and reproducible fluorescence analysis for R&D and routine laboratories.

Key features

• Detection sensitivity: water Raman peak S/N ≥150 (SP-F97/SP-F97pro) or ≥200 (SP-97xp).
• Scanning speed: up to 48000 nm/min for rapid 1 s classical spectra and ~1 min for high-quality 3D scans.
• Spectral range: excitation and emission continuous range 200–900 nm via double-grating monochromator.
• Bandwidth options: selectable excitation/emission bandwidths — 2/5/10/20 nm (model-dependent).
• Monitoring: excitation dual-beam ratio monitoring for stable signal acquisition.
• Optical gate: programmable optical gate for samples with light-reactive or unstable fluorescence.

Technical specifications

• Models: SP-F97 / SP-F97pro / SP-97xp
• Detection sensitivity (water Raman peak S/N): SP-F97/SP-F97pro ≥150 (P–P); SP-97xp ≥200 (P–P)
• Bandwidth (excitation/emission): SP-F97 10 nm; SP-F97pro & SP-97xp 2/5/10/20 nm
• Wavelength accuracy: ±1.0 nm (SP-F97/SP-F97pro); ±0.4 nm (SP-97xp)
• Wavelength repeatability: ≤0.5 nm (SP-F97/SP-F97pro); ≤0.2 nm (SP-97xp)
• Light source: 150 W deodorizing xenon lamp (Hamamatsu)
• Detector: Hamamatsu photomultiplier
• Excitation/Emission range: 200–900 nm
• Scanning speed: 10 positions, fastest 48000 nm/min; fine scanning 15 nm/min
• Measurement linearity: ≥0.995
• Gain adjustment: 1–17 positions
• Integration time: selectable 4 s to 20 ms (6 positions)
• Data output: Excel, BMP; Interface: USB 2.0
• Light value range: 0.00–10000; Peak intensity repeatability ≤1.5%
• Power: 220 V/50 Hz or 110 V/60 Hz; Consumption: 200 W
• Dimensions (mm): 380 × 445 × 310; Weight: GW 14 kg, NW 12 kg

Typical applications

• Material and polymer fluorescence characterization
• Pharmaceutical and biochemical analysis (drug research, impurity profiling)
• Clinical fluorescence assays and biomarker studies
• Environmental and water quality monitoring
• Food safety testing (vitamins, contaminants such as aflatoxin)

Ordering and options

• Models available: SP-F97 / SP-F97pro / SP-97xp
• Selectable bandwidths and gain settings; programmable optical gate option
• Standard delivery includes xenon lamp (Hamamatsu) and Hamamatsu PMT; consult for calibration, software and accessories
